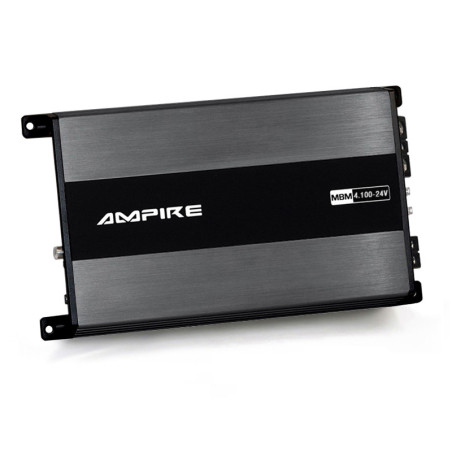

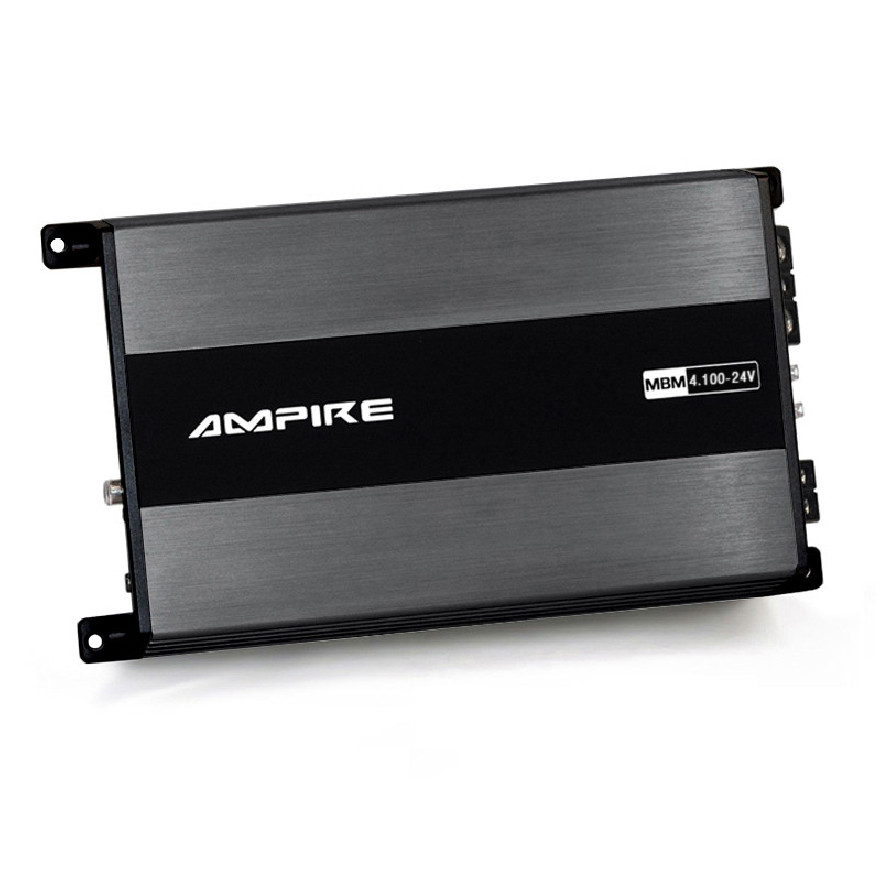

MBM4.100-24V

The further development of our bestseller among the amplifiers, the MBM4.100-24V, has been perfected in many details in its 4rd generation. The loudspeaker inputs are now balanced and can also be used with high-quality sound systems. We also gave the new 4-channel amp a bandpass including an input for an optional bass level remote for channels 1 & 2. This makes the MBM4.100-24V even more flexible to use.

FEATURES
- 4-channel class D amplifier for a 24 volt vehicle electrical system
- Ultra-compact design
- 4x RCA or 4x balanced speaker inputs via adapter
- 440 watts RMS / 880 watts max.
- 2 ohms stable or 4 ohms stable (bridged)
- Illuminated AMPIRE logo
- Input for optional remote level controller

POWER SUPPLY
- Operating voltage: 20-32 volts DC
- Remote voltage: 8 - 28 volts DC
- Quiescent current: 0.52A
- Quiescent current when switched off: <0.0002A

AMPLIFIER
- 2 ohms stable or 4 ohms stable (bridged)
- Output power (RMS) @ 28.8V / 4 ohms: 90 watts x 4
- Output power (RMS) @ 28.8V / 2 ohms: 110 watts x 4
- Output power (RMS) @ 28.8V / 4 ohms: 220 watts x 2 (bridged)
- Output power (max.) @ 28.8V / 4 ohms: 150 watts x 4
- Output power (max.) @ 28.8V / 2 ohms: 220 watts x 4
- Output power (max.) @ 28.8V / 4 ohms: 440 watts x 2 (bridged)
- Distortion factor: <0.5%
- Signal/noise ratio: >90dB
- Channel Separation: >68dB
- Input sensitivity: 500mV - 15.0V

ACTIVE CROSSOVER
Channels 1&2
- High pass filter/slope: 15Hz - 500Hz / 12dB
- Bandpass/Slope: HP 15Hz - 500HZ, TP 50Hz - 5000Hz / 12dB
- Bass Remote Controller (optional) in band pass mode
Channels 3&4
- High pass filter/slope: 50Hz - 5000Hz / 12dB

CABLE CROSS-SECTION OF THE CONNECTION TERMINALS
- Power supply up to 20mm²
- Speakers up to 4mm²

MISCELLANEOUS
- Fuse: 15A x 2 (internal)
- Maximum dimensions (LxWxH): 251 x 141 x 50mm
- Weight: 1.85 kg
- Inputs: RCA x4 for high-level and low-level (high-level auto-turn-on for radios with BTL power amplifiers)

CERTIFICATION
- E number: E8 10R-04 1281

IMPORTANT INSTALLATION NOTE!
In order to ensure safe operation of this power amplifier, loudspeakers must be connected to all loudspeaker outputs, in stereo or bridge mode.
