AF M1D

Suggested retail price: €649.00

Tax included

Audison mono amplifier

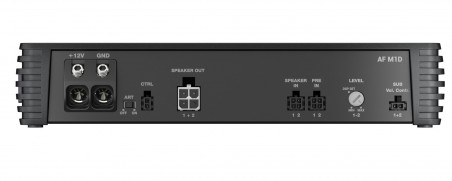

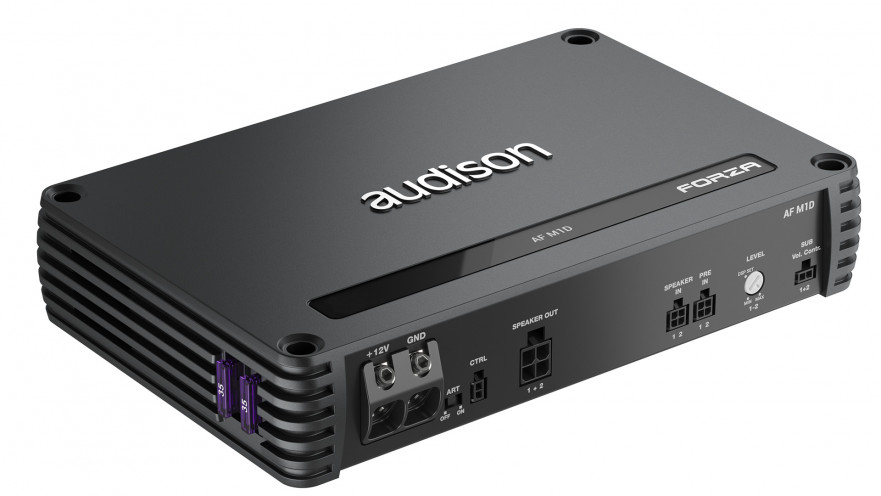

Audison AF M1D - 1 channel class-D amplifier 1200 Watt

"AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION"

AUDIOPHILE SOUND YOU EXPECT FROM AUDISON

AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!

*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

Technical Data:

Amplifier	1 channel class D
Output RMS 4Ω	1x 600 Watt RMS
Output RMS 2Ω	1x 1000 Watt RMS
Output RMS 1Ω	1x 1200 Watt RMS
Inputs	1ch high or low level
Consumption	65A @ 1Ω max musical power
Damping factor	140 @ 1 kHz
Distortion	0,1 % 1 khz, 70 % power
Filter mode	N/A
Speaker Turn-on ART	Selectable
Size	240 mm x 47 mm x 156 mm
