KVA-MOVANO

Suggested retail price: €159.00

Tax included

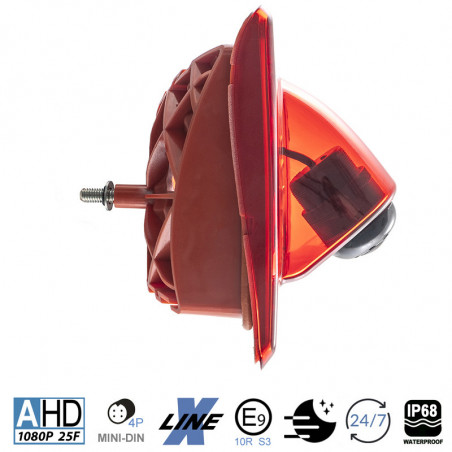

Ampire AHD camera for Opel Movano B, Renault Master and Nissan NV400

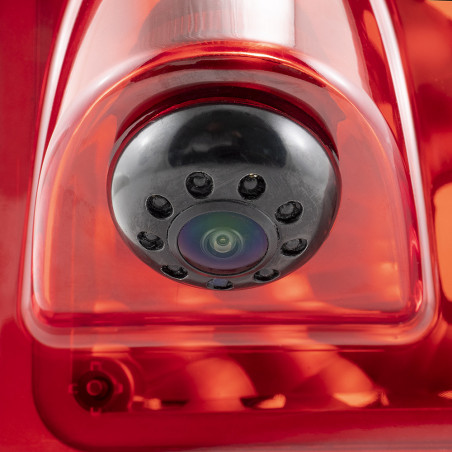

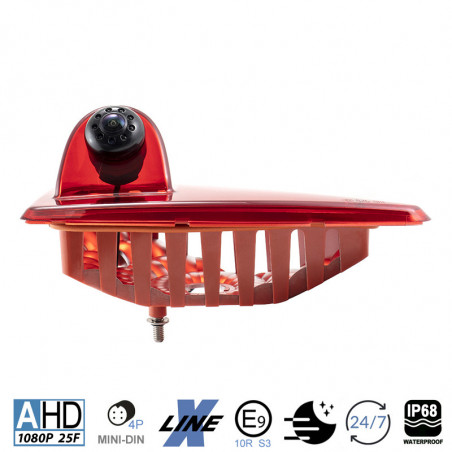

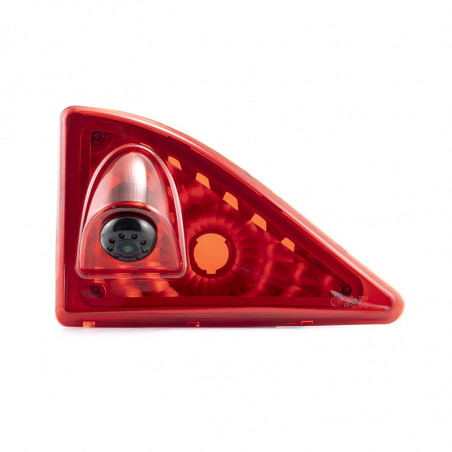

High-resolution AHD reversing camera KVA-MOVANO which is mounted in place of the factory-fitted brake light glass.

Compatibility
- Opel Movano B year of construction 2010-2021
- Renaul Master 3 year of construction 2010>
- Nissan NV400 year of construction 2010>

TECHNICAL DATA
- Video standard AHD 1080P 25F
- Image sensor: GC2053 (FH8536H)
- Image sensor size 1/2.9
- Resolution 1920x1080 pixels
- 3D noise reduction
- Sequential scanning
- Minimum illumination: 0.01 lux
- Infrared illumination for night vision
- Signal-to-noise ratio >43dB
- Automatic white balance
- Image reproduction horizontally mirrored
- Horizontal viewing angle 125°
- Vertical viewing angle 70°
- Diagonal viewing angle 165°
- Protection class IP68
- Operating voltage: 12 Volt DC
- Power consumption: max. 250mA
- Operating temperature: -20° to 70°C
- Colour: black
- Cable length: 10 metres with 4-pin MINI-DIN plugs
- E approval E9-10R-05.1652
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003

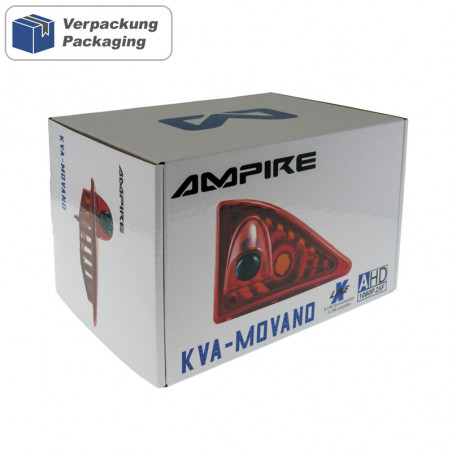

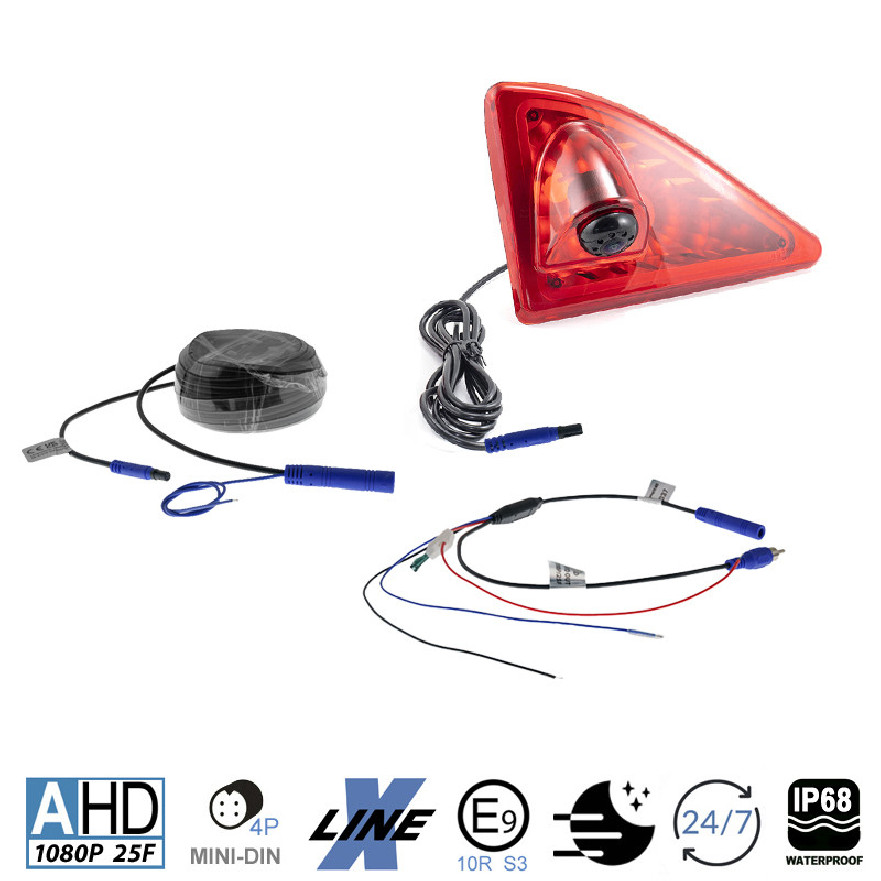

SCOPE OF DELIVERY
Rear view camera
AK1037 Power supply unit with blue connectors
AK1039 Mini-DIN extension cable 10m with blue connectors

IMPORTANT NOTE
Depending on the roof structure and the trailer coupling installed on the vehicle, it may not be possible to see the trailer coupling on the monitor.
This AHD camera can only be connected to AHD1080P 25F compatible monitors and video feeders and is not compatible with CVBS (FBAS) monitors and video feeders for an NTSC video signal.

Technical Data

Brand: Ampire
Reference: AMKVA-MOVANO
Voltage: 12 V
Camera type: Brake Light
Connector type: Mini 4 pin
IP rating: IP68
Car Brand: Nissan
Opel
Renault
Car Model: Master
Movano
NV400
Cable Length: 10 m
Resolution: 1920 x 1080
Picture Format: AHD (1080p 25F/S)
EAN13: 4260052641002

Downloads

Ampire KVA-MOVANO Manual
