AM KAX 702

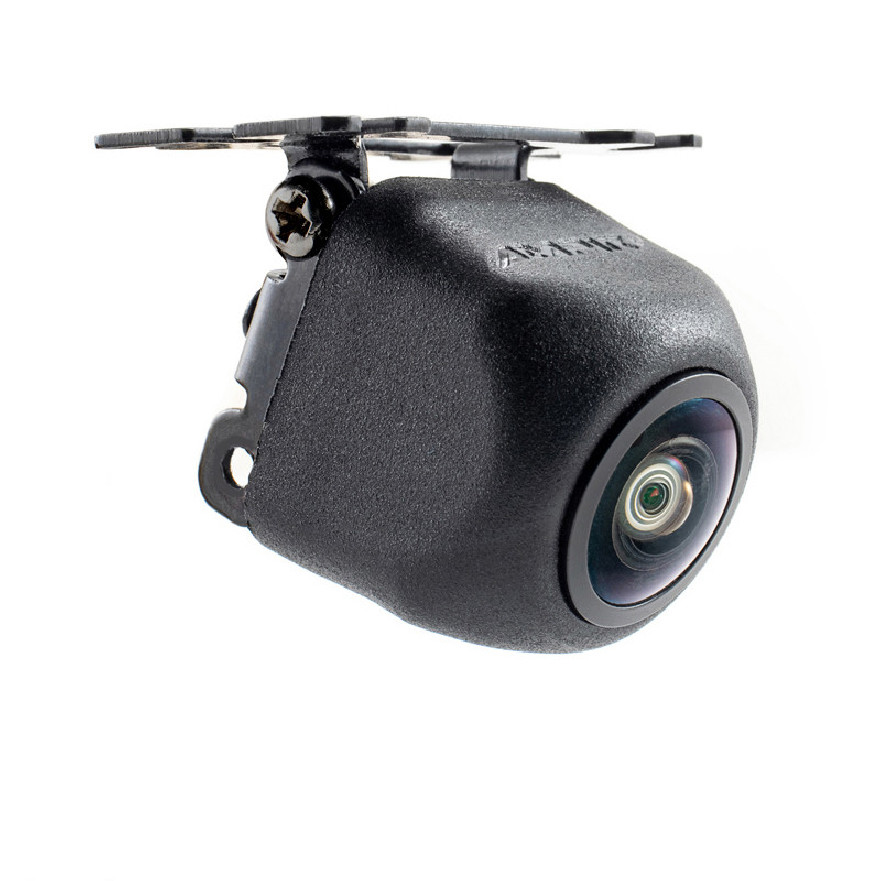

The KAX702 miniature under-mount camera is a high-resolution switchable AHD or CVBS camera with a limitless range of applications in cars, buses, motorhomes, trucks or trailers as a front or rear view camera. The matt black plastic housing is particularly weatherproof, IP69K waterproof and very sturdy. Optionally, two different auxiliary lines (narrow/wide) can be displayed in the video signal to enable the viewer to park more easily. Supplied complete with 8 meter extension cable with high quality copper strands.

FEATURES
- AHD/CVBS wide-angle camera in plastic housing
- Can be used in 24/7 continuous operation
- IP69K waterproof with stainless steel bracket

SETTING OPTIONS
- Video format AHD or CVBS (adjustable)
- Guide lines: switched off at the factory (can be switched on)
- Image reproduction mirrored (adjustable)

TECHNICAL DATA
- Image sensor type AHD 1/4 2729
- Video signal 1080P with 30 frames/second
- Resolution 1920x1080 pixels
- Diagonal viewing angle 170°
- Horizontal viewing angle 150°
- Vertical viewing angle 90°
- Exposure 1/50-60~1/15000 seconds
- Signal to noise ratio =>60.5dB
- Light sensitivity < 0.01 lux
- Automatic white balance
- Automatic video level adjustment

GENERAL DATA
- Operating voltage 6 to 26 Volt DC
- Current consumption 60-90mA
- DIN protection class IP69K
- Black matt housing with stainless steel mounting

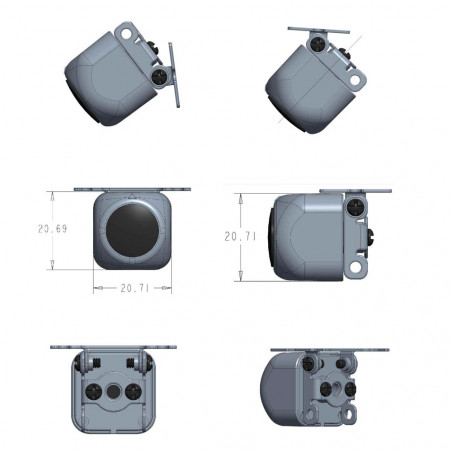

- Mounting dimensions 20.7x20.7x17.8mm
- Operating temperature -40°C to +75°C
- Storage temperature -60°C to 105°C
- E certified

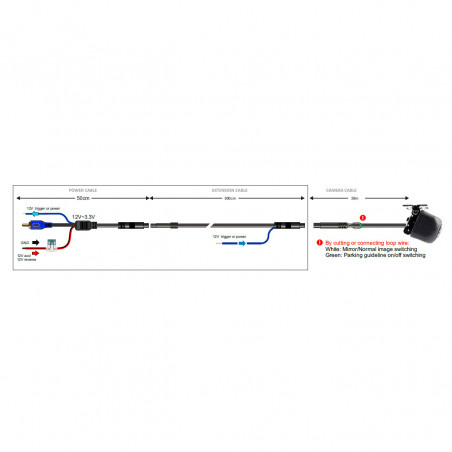

CABLE LOOPS
Guide lines switched on or off (adjustable via green loop)
Mirrored or anti-glare playback (adjustable via blue loop)
AHD or CVBS playback (adjustable via white loop)

APPROVALS
CE Directive of 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report No. STR12058091E
FCC Part 15B Report No. STR12058092E-3

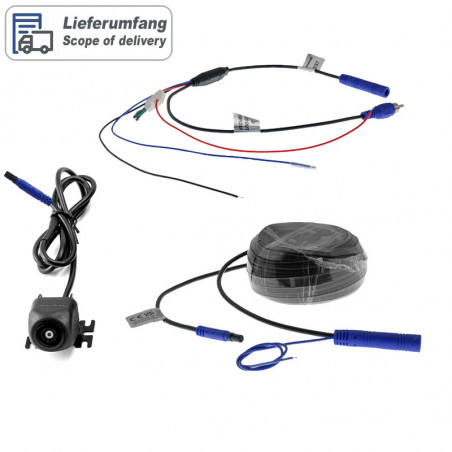

SCOPE OF DELIVERY
- Camera
- 8m extension cable AK1038
- Power supply AK1037
- Operating instructions

ORDERING INFORMATION
This camera is a high-resolution AHD camera with 1080P resolution and 25 frames per second. In AHD mode, this camera can only be connected to AHD-compatible monitors, car radios, or interfaces. If the camera input on your monitor does not support AHD and can only display a video signal in CVBS, FBAS, or NTSC, then this camera (purple cable loop) must be set to CVBS.
