KVA-T6-F
Suggested retail price:
€159.00
Tax included

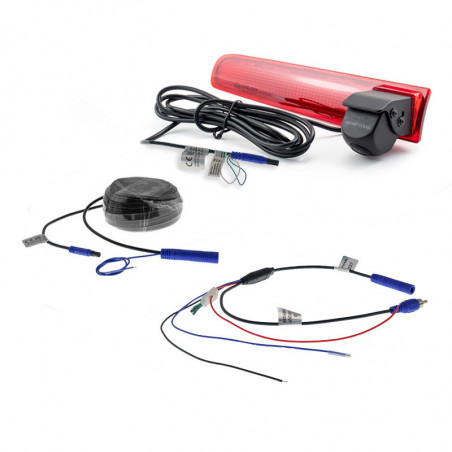

Ampire AHD camera for VW T6 / T6.1 until 2021
INSTRUCTIONS FOR USE
When cleaning the vehicle, avoid direct contact with pressure washers. Tighten the mounting nut by hand only. The camera is not suitable for continuous operation or surveillance. Connecting it to the ignition (K15) will cause overheating. Avoid overstretching the connection cable during installation.

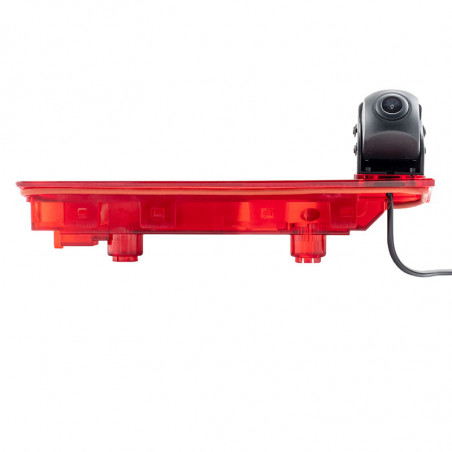

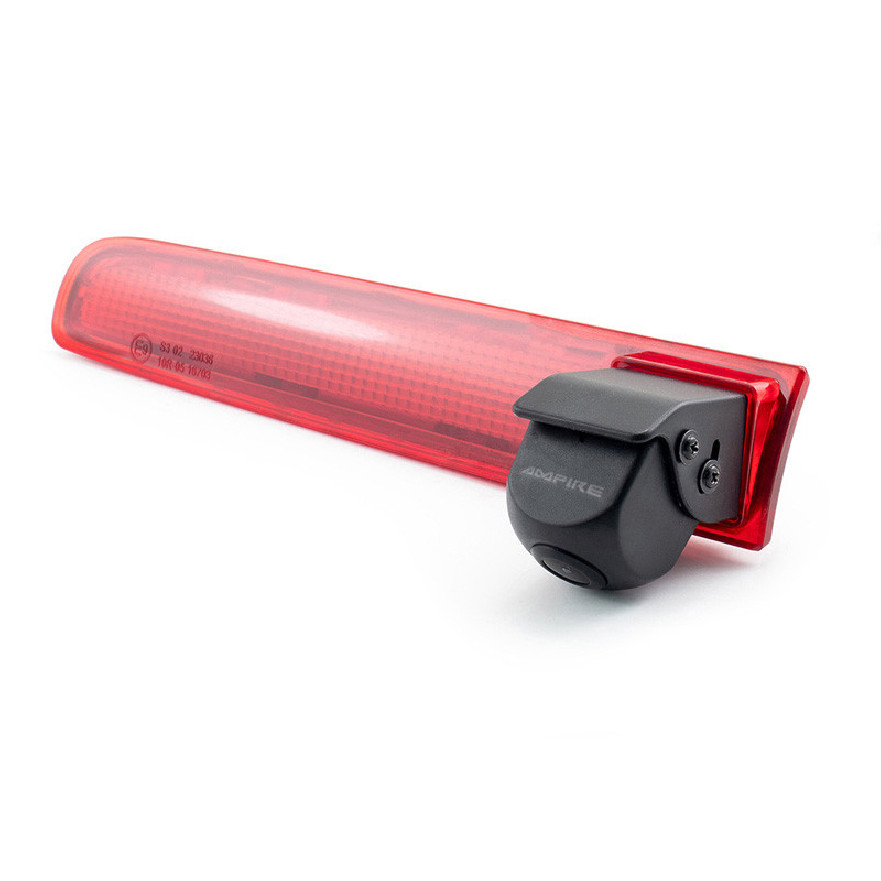

Vehicle-specific reversing camera for the VW Transporter T5 and T6 with barn doors. The KV-T6F-2G is simply exchanged for the factory-installed left brake light lens.
TECHNICAL DATA
- Mirrored image display
- Image sensor: 1/3" CMOS High Performance Digital Super Clarity Image Sensor
- Resolution: 756 x 504 pixels
- Viewing angle: 150° diagonal
- Image format: NTSC
- 480 lines resolution
- IP68 waterproof rating
- Operating voltage: 12 V DC
- Current consumption: max. 200 mA
- Operating temperature: -20° to 70°C
- Minimum illumination: 0.2 lux
- Color: black
- Cable length: 10 meters with mini-DIN connectors
- E-mark approval: E9-10R-05.1652
- CE approval: EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC Approval ANSI C63.4-2003
Technical Data
- Brand
- Ampire
- Reference
- AMKVA-T6-F
- Voltage
- 12 V
- Camera type
- Brake Light
- Connector type
- HMDI
- IP rating
- IP68
- Car Brand
- Volkswagen
- Car Model
- T6
T6.1 - Cable Length
- 10 m
- Resolution
- 756 x 504
- Picture Format
- AHD (1080p 25F/S)
- EAN13
- 4260052641026
Ampire AHD camera for VW T6 / T6.1 until 2021
