KCA 505

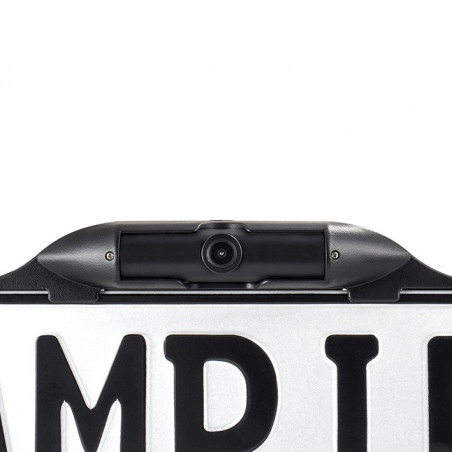

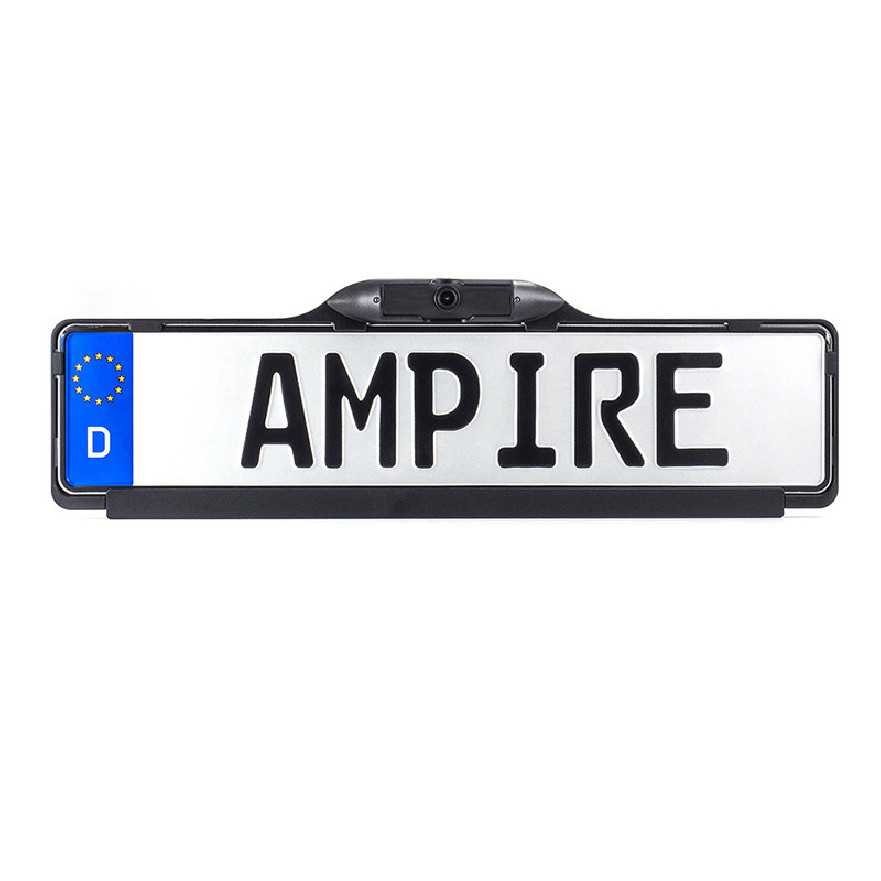

The KCA505 camera has a high-resolution AHD camera integrated in a robust holder for mounting behind the license plate in German EU format. The vertical viewing angle of the camera is of course infinitely adjustable to adapt to the tilt. The video signal is mirrored for mounting at the rear of the vehicle. This product was only developed for German EU license plates measuring 110x520mm. Please check whether your license plate fits before ordering. EU license plates from Austria, for example, are 10mm higher and do not fit in the KCA505.

TECHNICAL DATA
- Video standard AHD 1080P 25F
- Image sensor: GC2053 (FH8536H)
- Image sensor size 1/2.9
- Resolution 1920x1080 pixels
- 3D noise reduction
- Sequential scanning
- Minimum illumination: 0.01 lux
- Signal/noise ratio >50dB
- Automatic white balance
- Image playback mirrored horizontally
- Auxiliary lines: switched on (can be switched off by separating the cable loop)
- horizontal viewing angle 120°
- diagonal viewing angle 150°

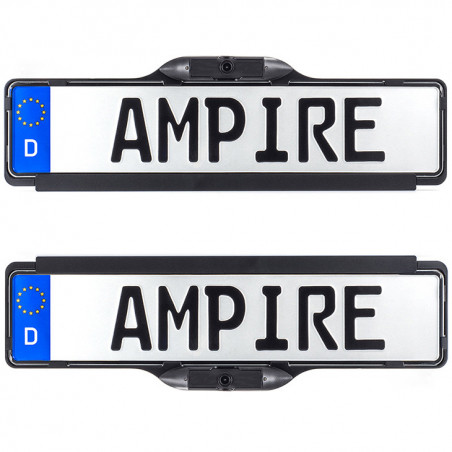

- Camera head vertically adjustable up to 20°
- Protection class IP69 waterproof
- Operating voltage: 12 volts DC
- Power consumption: max. 75mA
- Operating temperature: -20° to 70°C
- Color: Black
- Cable length: 8 meters with 4-pin. MINI DIN connectors
- E approval E9*10R06/00*22328*00
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003

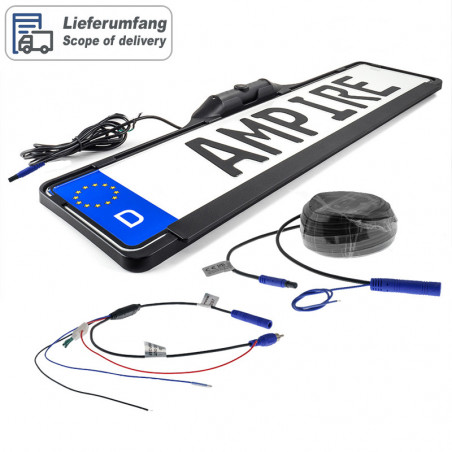

SCOPE OF DELIVERY
- Backup camera
- AK1037 power supply
- AK1038 Mini-DIN extension cable 10m

IMPORTANT NOTE
When cleaning your vehicle, avoid direct contact of the camera lens with high-pressure cleaners. The camera should not be operated with ignition (K15).
