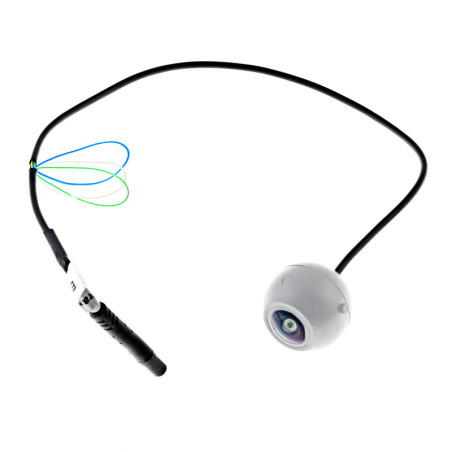

KCX102W

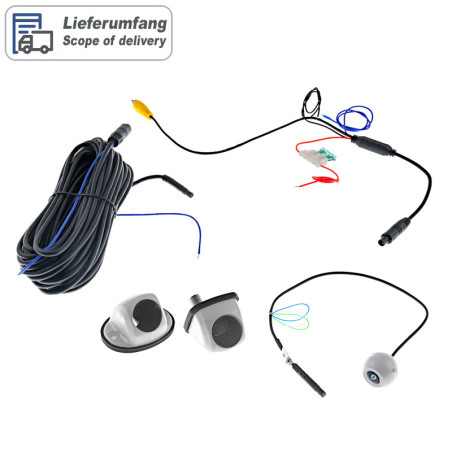

The new KCX102W miniature in/under-car camera is a reversing camera with a limitless range of applications in cars, buses, motorhomes, lorries or trailers. The matt black housing is particularly weatherproof, IP69K waterproof and very sturdy. Optionally, two different auxiliary lines (narrow/wide) can be faded into the video signal to enable the viewer to park more easily. Supplied complete with 8 meter extension cable with high quality copper strands.

FEATURES

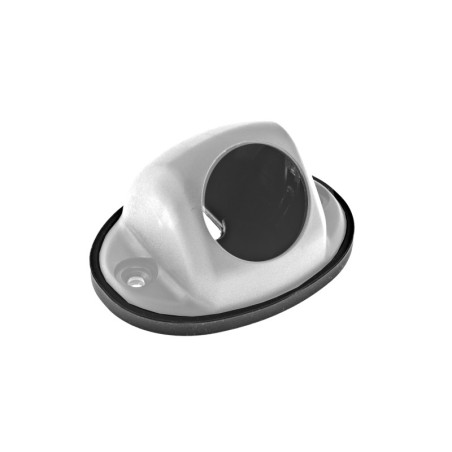

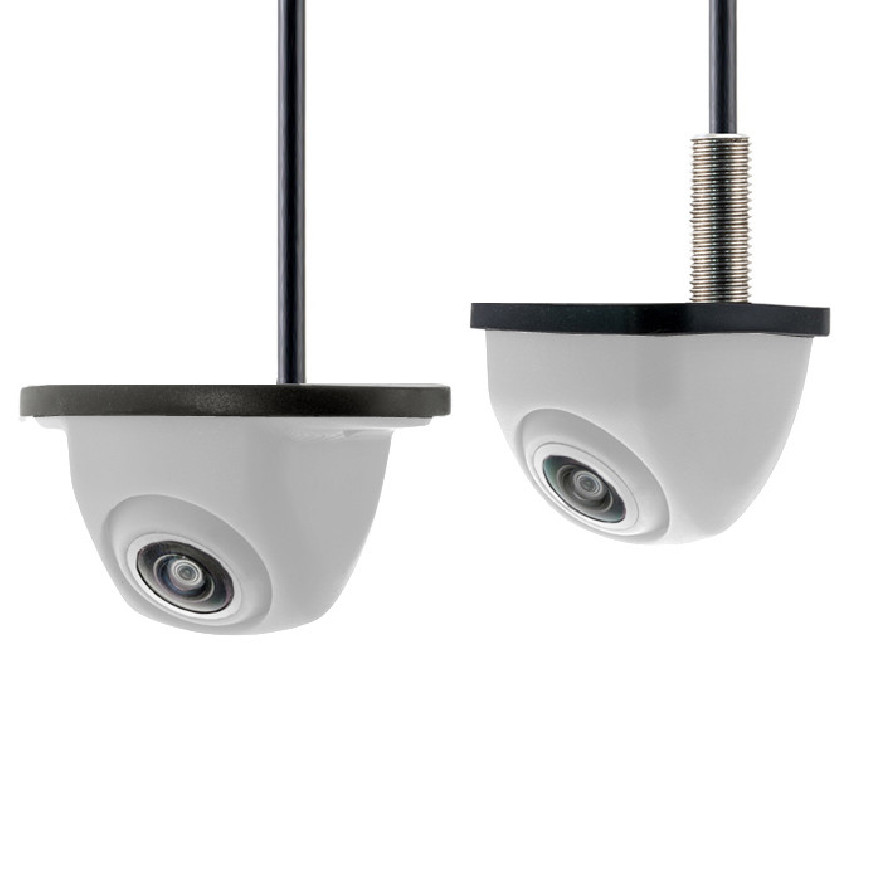

- Wide-angle camera with two plastic housings
- Can be used in 24/7 continuous operation
- IP69K waterproof with stainless steel bracket

SETTINGS
- 2 different auxiliary lines: switched off at the factory (can be switched on)
- Matt black housing with stainless steel mounting
- Image display mirrored (adjustable)
- Camera can mounted 180° rotated in the housing

TECHNICAL DATA
- Image sensor type 1/4 1233 HD colour CMOS low light sensor
- Video signal NTSC with 60 frames/second
- Pixel resolution 960H480V
- DIN protection class IP69K
- Resolution 800 TV lines
- Exposure 1/50-60~1/15000 seconds
- Signal to noise ratio =>46dB
- Dynamic range >>74dB
- Light sensitivity < 0.01 Lux/F1.2
- Output signal 1.0Vp-p, 75 OHM
- Automatic white balance
- Automatic video level adjustment
- Operating voltage 12/24 Volt DC
- Power consumption 25-55mA
- Diagonal viewing angle 188°
- horizontal viewing angle 155°
- Vertical viewing angle 113
- Operating temperature -40°C to +75°C
- Storage temperature -60°C to 105°C

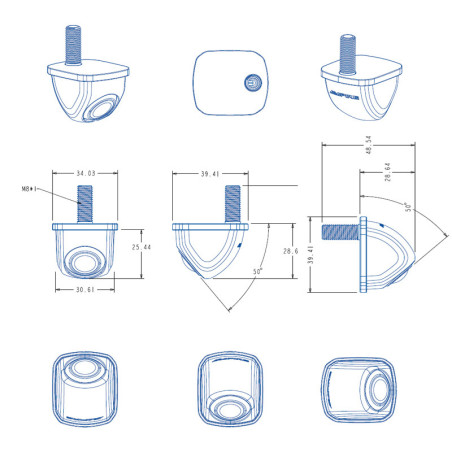

- Dimensions housing 1: 40x34x31mm plus 20mm thread

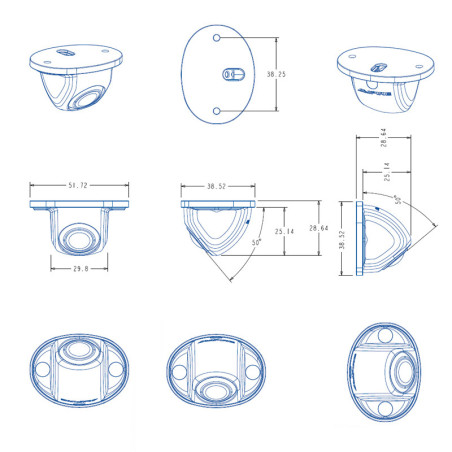

- Dimensions housing 2: 52x39x29mm
- E certified

APPROVALS
CE Directive of 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report No. STR12058091E
FCC Part 15B Report No. STR12058092E-3
