XSA405

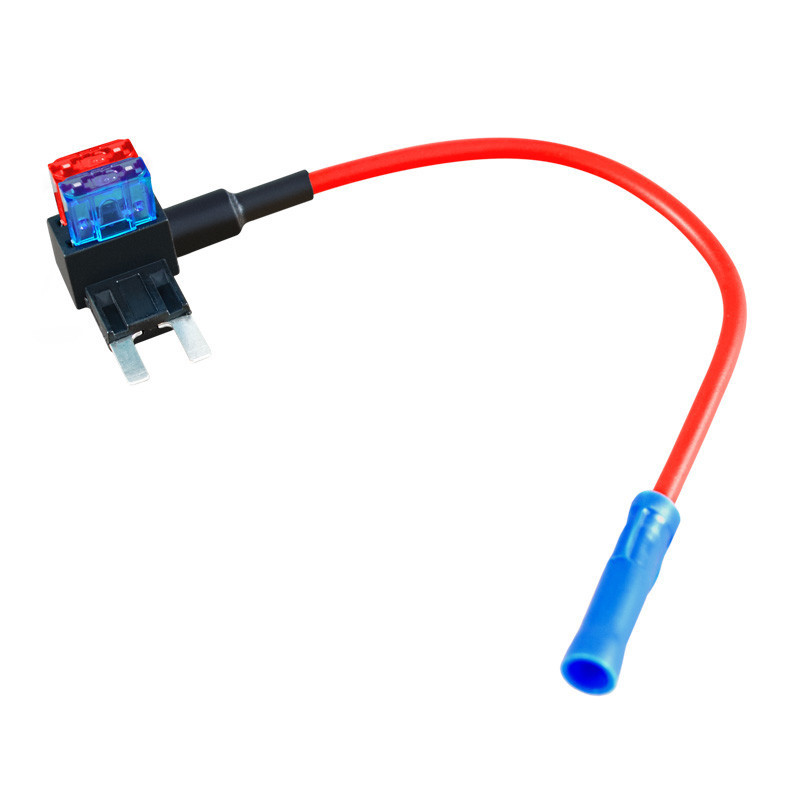

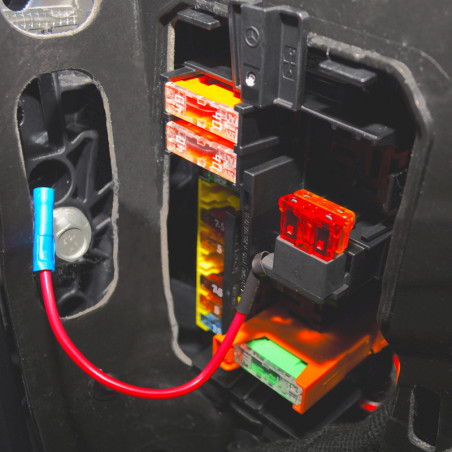

With this practical safety tap, you can pick up a signal separately from the vehicle directly at the fuse box. Simply pull out the original mini flat fuse and plug in the XSA200 instead. Insert the original fuse into the XSA200 again and the desired tap is protected by a supplied 10A mini flat fuse on a 4mm round plug-in sleeve.

DELIVERIES
- 1 piece MINI fuse tap XSA405
- 1 piece MINI fuse 5A

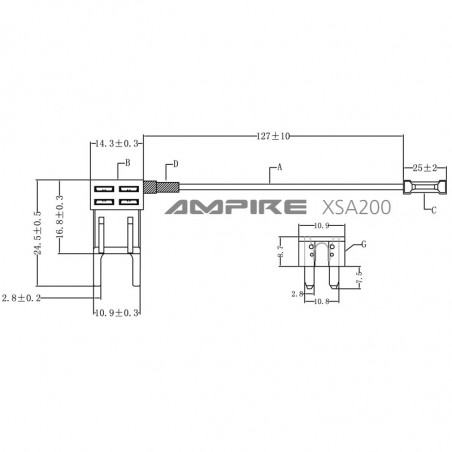

TECHNICAL SPECIFICATIONS

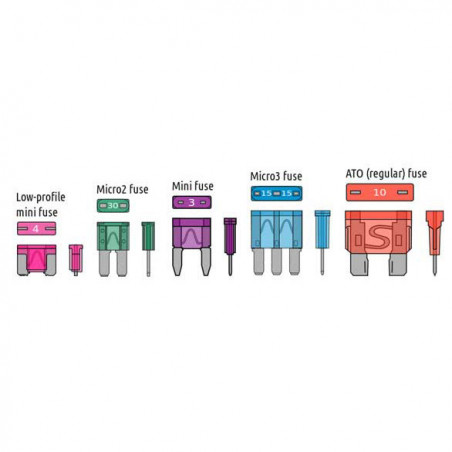

- Fuse version: Mini flat fuse
- DIN / ISO: 72581 / 3C
- until voltage: 32V
- to current: 5A
- Material: Polyamide 6.6
- Cross section: 1.3 mm²
- Cable length: 120 mm
- Surface: tinned
- SVHC: No SVHC substances present!

NOTE
~- One of the pictured 5A mini flat fuses is included. Please be sure to insert the fuse holder in the correct direction. The fuse holder has one input and two outputs.
