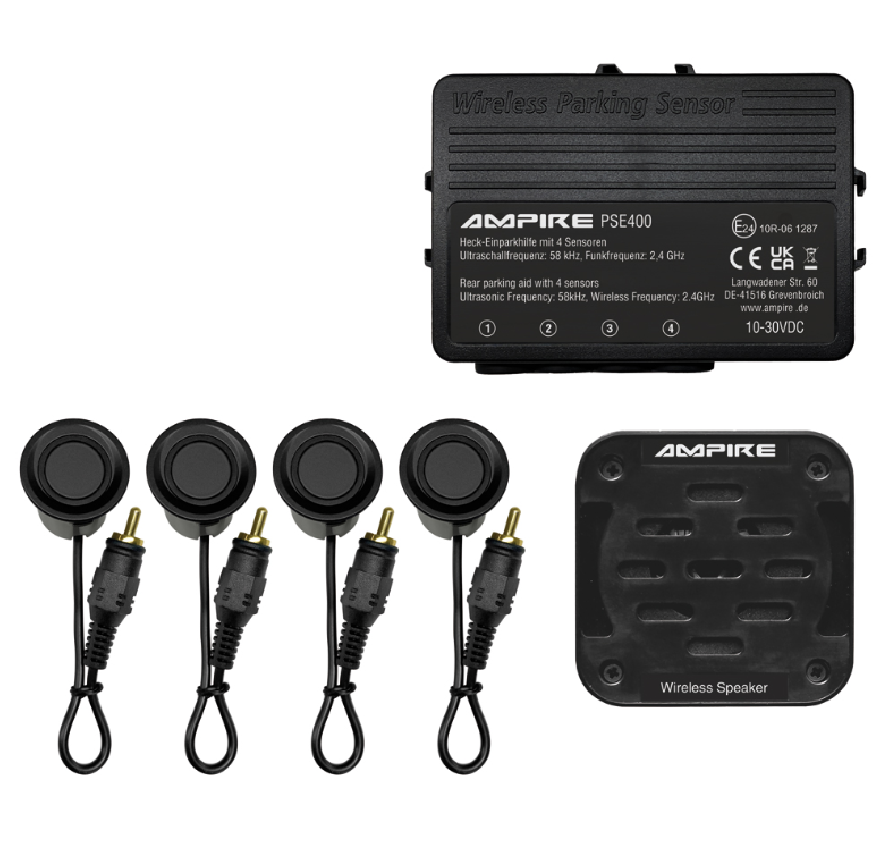

PSE400

Ampire parkeersensoren achter met plugmount

Features:
- Complete monitoring of the rear area
- Timely warning of obstacles
- Avoidance of personal injury and property damage
- Easy parking in tight parking spaces
- Self-diagnosis function
- Acoustic warning
- Automatic activation when reversing
- 4 ultrasonic sensors for bumper mounting from the front
- 22mm bore hole, 24mm installation depth
- Range adjustable between 30cm to 100cm and 30cm to 260cm
- Range (factory setting) from 160cm to 30cm
- Very simple installation using plug connections
- Wireless connection between the control unit and the loudspeaker
- E-type approval E24 10R-06 1287

Technical data
- Ultrasonic frequency: 58kHz
- Radio frequency between the control unit and loudspeaker: 2.4GHz
- Temperature range: -40°C to +80°C
- Operating voltage: 10-30VDC
- Power consumption of control unit (max): 55mA
- Speaker current consumption (max): 80mA
- ACC current consumption off: 0mA
- Sensor cable lengths: 235cm
- Ranges
Level 1: 30-100cm
Level 2: 30-130cm
Level 3: 30-160cm (factory setting)
Level 4: 30-210cm
Level 5: 30-260cm
- Total weight: 485g

OPTIONAL ACCESSORIES
- Sheet metal punch 22mm: PW220

IMPORTANT NOTE
Please connect the positive connection of the speaker to the ignition cable (KL15).
It is not possible to install the sensors in metal bumpers.
