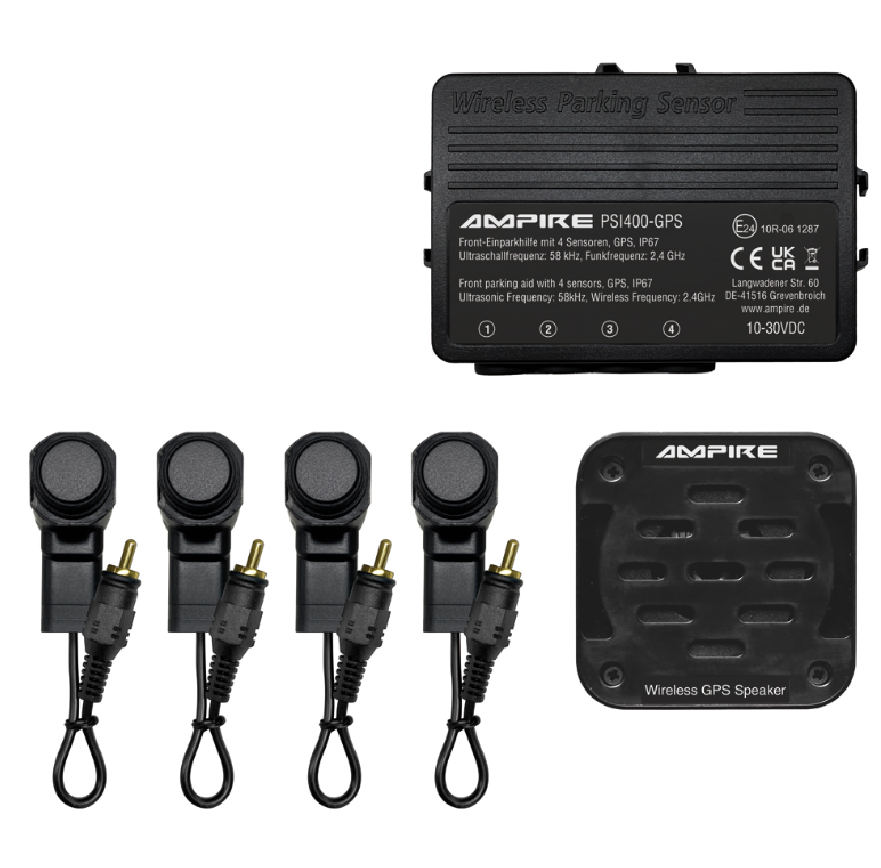

PSI400-GPS

Ampire parkeersensoren achter met flushmount

Your advantages at a glance
- Complete monitoring in front of the vehicle
- Automatic activation via GPS at speeds >15km/h
- Automatic deactivation via GPS at speeds <15km/h
- Timely warning of obstacles
- Avoidance of personal injury and property damage
- Easy parking in tight parking spaces
- Self-diagnosis function
- Acoustic warning
- 4 ultrasonic sensors for bumper mounting from the rear (OEM design)
- 16.5mm borehole, 25mm installation depth
- Range adjustable between 30cm to 100cm and 30cm to 260cm
- Range (factory setting) from 160cm to 30cm
- Extremely easy installation using plug-in connections
- Wireless connection between the control center and the GPS speaker
- E-type approval E24 10R-06 1287

Technical data
- Ultrasonic frequency: 58kHz
- Radio frequency between the control center and loudspeaker: 2.4GHz
- Temperature range: -40°C to +80°C
- Operating voltage: 10-30VDC
- Current consumption central unit (max): 55mA
- Current consumption loudspeaker (max): 100mA
- Current consumption ACC off: 0.35mA
- Sensor cable lengths: 235cm
- Ranges
Level 1: 30-100cm
Level 2: 30-130cm
Level 3: 30-160cm (factory setting)
Level 4: 30-210cm
Level 5: 30-260cm
- Total weight: 530g

OPTIONAL ACCESSORIES
- Sheet metal punch 16.5mm: PW165
- Angled installation mounting set, 5°: PB-PSI-5
- Angled installation mounting set, 15°: PB-PSI-15

IMPORTANT NOTE
Please connect the positive connection of the loudspeaker to the ignition cable (KL15).
It is not possible to install the sensors in metal bumpers.
