WFS-400-SCM

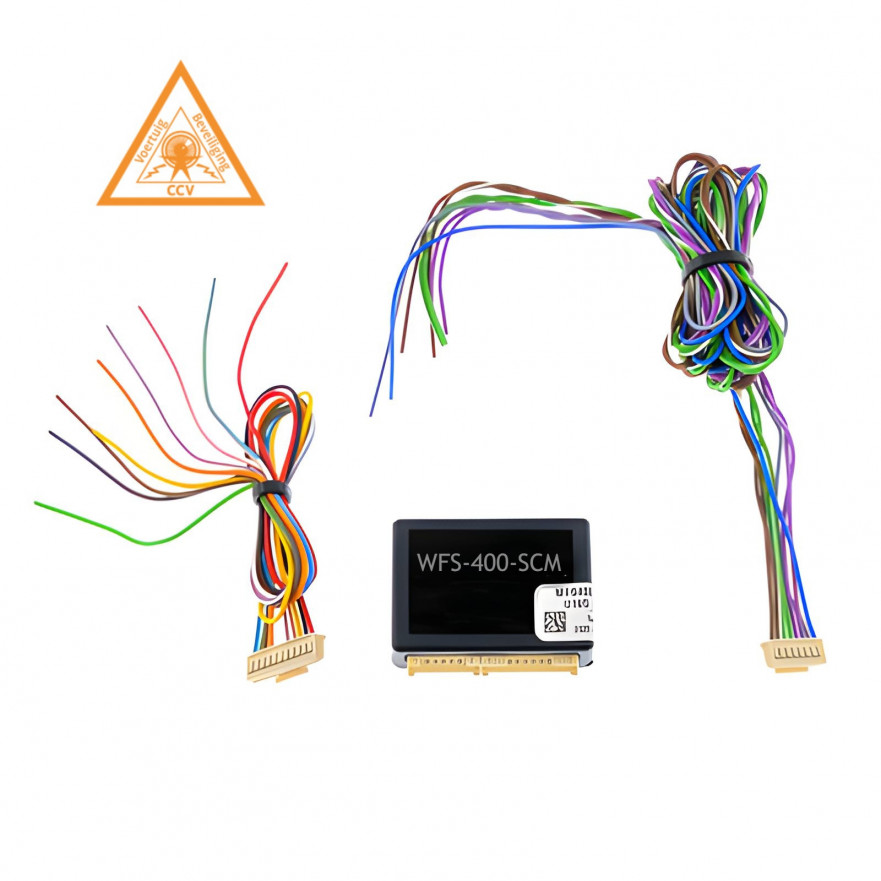

This CAN bus interface you can install a car alarm or remote start systems in a modern car with up to three different CAN databus lines. The WFS400-SCM interface can be installed in many vehicles. Before the installation, the WFS400-SCM need a vehicle-specific firmware. To upload the firmware, you need the BL600 boot loader and a computer with USB port.

OVERVIEW OF THE ANALOGUE INPUTS

INDICATORS
- If 12 volts DC are applied to this input, the vehicle indicators light up.
CENTRAL LOCKING CLOSE AND CONVENIENCE LOCKING
- If earth is present at this input, the central locking system and all windows lock.
OPENING THE CENTRAL LOCKING SYSTEM
- If earth is present at this input, all doors open.

OVERVIEW OF THE ANALOGUE OUTPUTS

IGNITION
- When the ignition is switched on, 12 volts DC is present at this output, even when the engine is started.
REMOTE CONTROL
- An earth is present here when the OPEN/CLOSE/COMPARTMENT ROOM button on the remote control is pressed
ALARM
- In the event of an alarm from the factory-fitted alarm system, an earth is present at the output.
CONTACT
- An earth is present at the output when a door or bonnet is opened.
CENTRAL LOCK (alternative)
- Vehicle-specific output for activating the central locking system.
INDICATORS (alternative)
- Vehicle-specific output for activating the vehicle indicators.

Important note:
Please check with the car list in the download section which vehicles are compatible. Not all features are on all vehicles and technically possible, of course, depending on equipment. Please check after installation if no malfunction and whether the data bus after falling asleep at least 45 minutes. The current draw of the locked vehicle before and after the installation of WFS400-SCM should not increase significantly.
