APK 130
Suggested retail price:
€189.00
Tax included

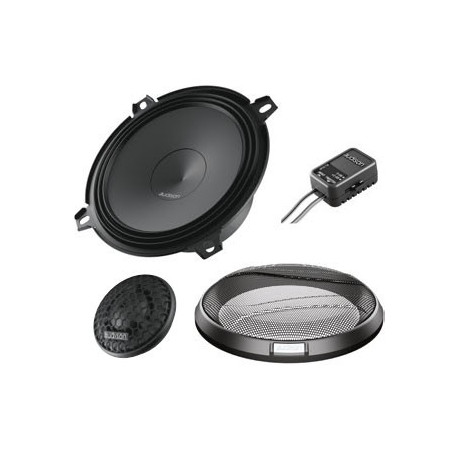

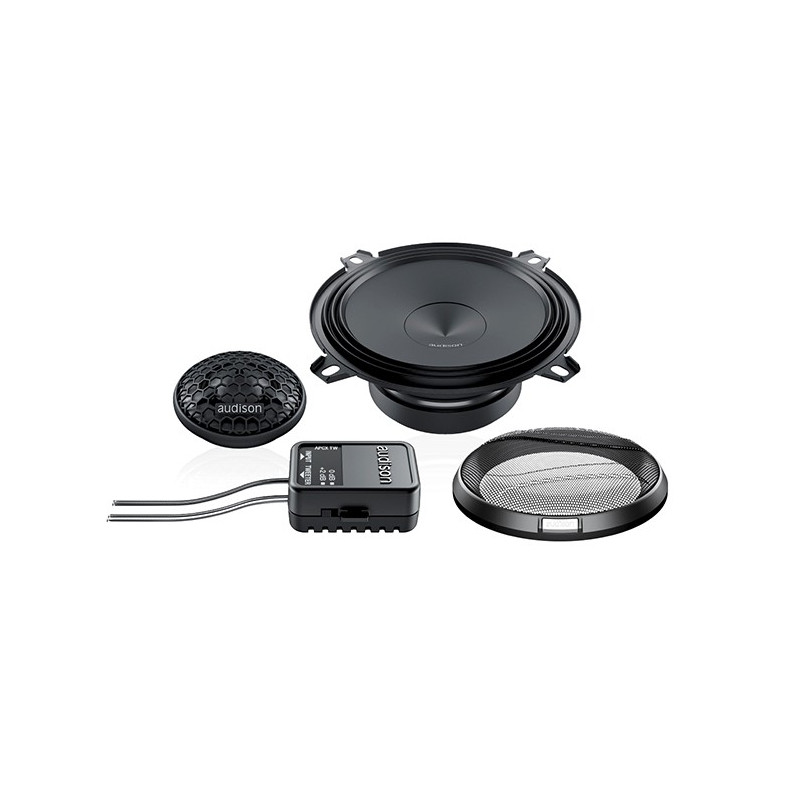

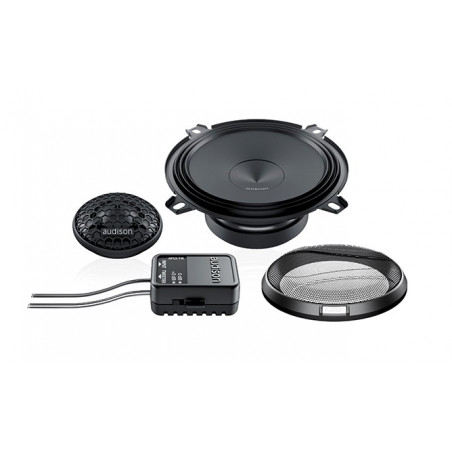

Audison 130 mm 2 way composet
APK 130 - 2 way composet
Two way system features AP 1 tweeter and AP 5 woofer.
APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications:
- +2dB if installed behind the OEM grille.
- 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.
To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.
Technical Data:
| Component | 2 way System |
| Size | 165 mm (6.5″) AP 5 Woofer 26 mm (1″) AP 1 Tweeter Inline Crossover APCX TW |
| Power Handling | 75 W Continuous Power 225 W Peak Power |
| Depth | 48,5 mm |
| Impedance | 4 Ω |
| Frequency Response | 70 – 20k Hz |
| Sensitivity | 93 dB/Spl |
| Crossover type | 1-way inline tweeter |
| Crossover | HP @ 3,5 kHz - 6 dB Oct |
| Xmax | +/- 2 mm |
| FS | 90 Hz |
| Voice coil woofer | 32 mm |
| Speaker grill | Included |
Technical Data
- Brand
- Audison
- Reference
- AUAPK130
- Speaker Type
- Composet
- Speaker Size
- 5"
- Impedance
- 4 Ω
- Watt RMS
- 75 w
- Watt peak
- 225 w
- Frequency Response
- 70 – 20k Hz
- Mounting Depth
- 48,5 MM
- EAN13
- 8018823111737
