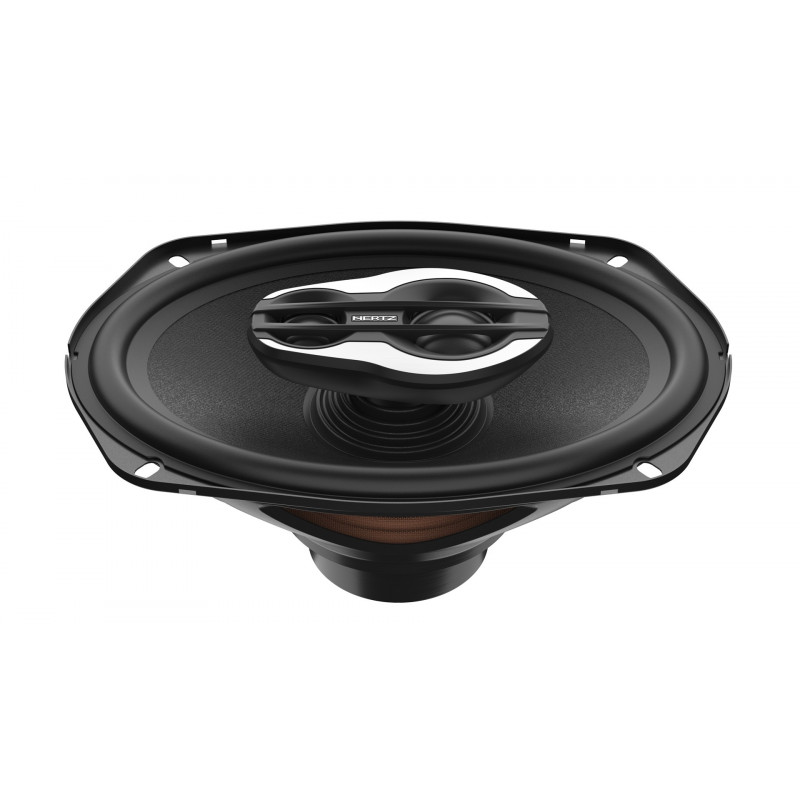

SX 690 Neo.1
Suggested retail price:
€319.00
Tax included
Hertz 6x9 inch spl coaxial set
SX 690 - 6x9" coaxial set (outdoor)
SX 690.1 NEO is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and 1” dome super tweeter with a resettable solid-state protection circuit. Cone is made with nature-proof high stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on polyimide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.
The provided MPG 690 grille is made of a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
Technical Data:
| Component | 3 way coaxial |
| Size | 6x9″ Woofer 35 mm (1,4") Tweeter 25 mm Super tweeter |
| Power Handling | 130 W Continuous Power 260 W Peak Power |
| Depth | 85 mm |
| Impedance | 4 Ω |
| Frequency Response | 65 – 24k Hz |
| Sensitivity | 94 dB/Spl |
| Xmax | +/- 5,5 mm |
| FS | 65 Hz |
| Voice coil woofer | 38 mm |
| Speaker grill | Not Included |
Attachments:
SX 690 Neo Tech Sheet
SX 690 Neo Manual
Technical Data
- Brand
- Hertz
- Reference
- HZSX690Neo.1
- Speaker Type
- Fullrange
- Speaker Size
- 6x9"
- Impedance
- 4 Ω
- Watt RMS
- 130 w
- Watt peak
- 260 w
- Frequency Response
- 65 ÷ 24k
- Mounting Depth
- 85MM
- EAN13
- 8018823135931
