APX 690
Suggested retail price:
€159.00
Tax included

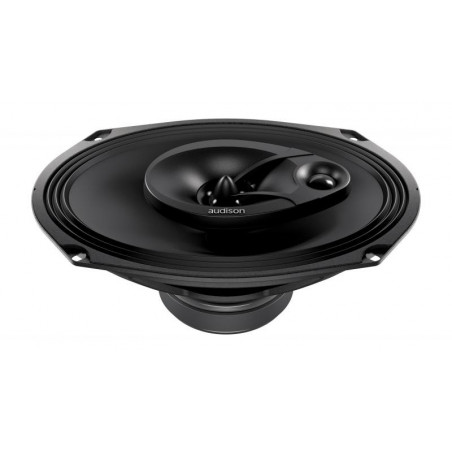

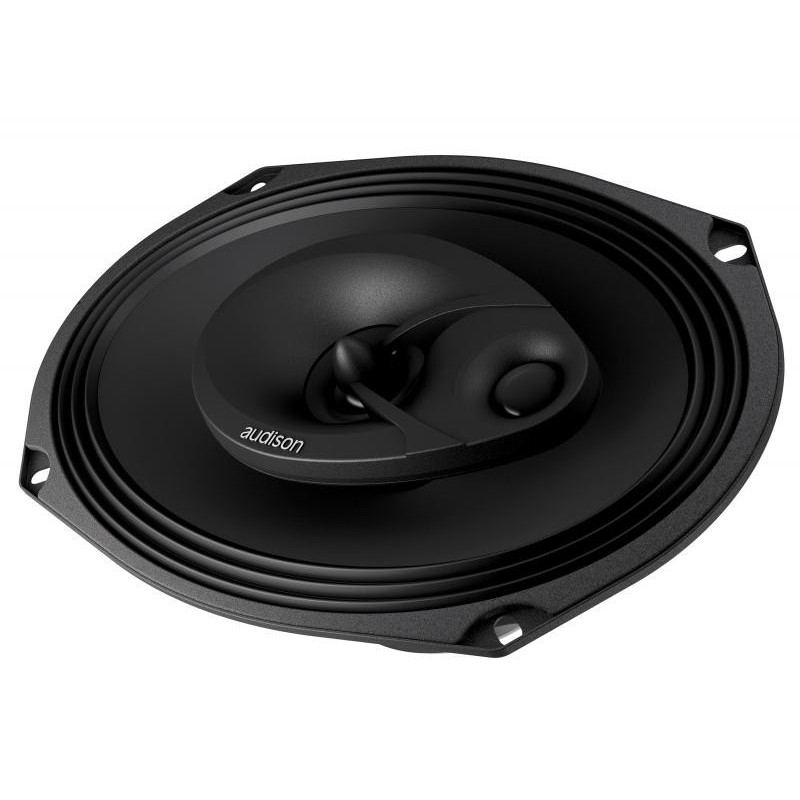

Audison 6x9 inch 3 way coaxial
APX 690 - 3 way coaxial
APX 690 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.
The 6x9″ cones surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Technical Data:
| Component | 3 way coaxial |
| Size | 6x9″ woofer 40 mm (1,58") tweeter 15 mm (0,6″) super tweeter |
| Power Handling | 100 W Continuous Power 300 W Peak Power |
| Depth | 81 mm |
| Impedance | 4 Ω |
| Frequency Response | 40 – 23k Hz |
| Sensitivity | 96 dB/Spl |
| Xmax | +/- 3,5 mm |
| FS | 60 Hz |
| Voice coil woofer | 25 mm |
| Speaker grill | Included |
Technical Data
- Brand
- Audison
- Reference
- AUAPX690
- Speaker Type
- Fullrange
- Speaker Size
- 6x9"
- Impedance
- 4 Ω
- Watt RMS
- 100 w
- Watt peak
- 300 w
- Frequency Response
- 40 ÷ 23k Hz
- Sensitivity
- 96 dB/Spl
- Mounting Depth
- 81 MM
- EAN13
- 8018823111676
