APX 570
Suggested retail price:
€119.00
Tax included

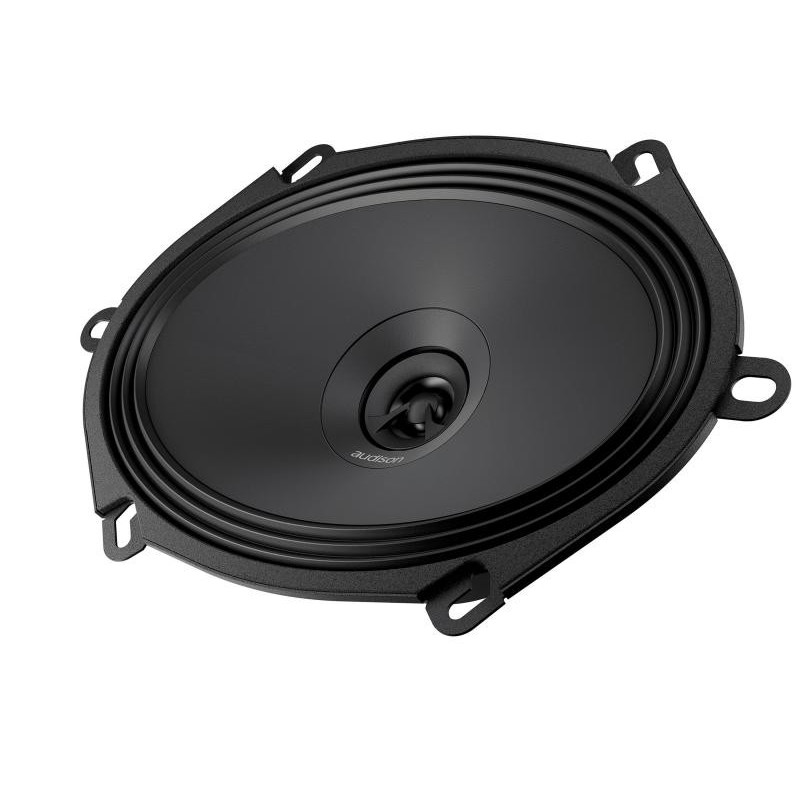

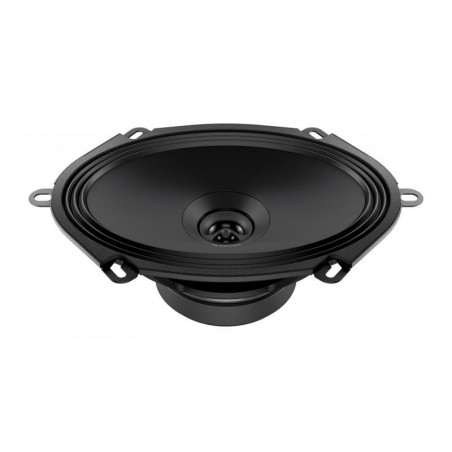

Audison 5x7 inch 2 way coaxial
APX 570 - 2 way coaxial
APX 570 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.
The 5x7″ cones surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Technical Data:
| Component | 2 way coaxial |
| Size | 5x7″) 24 mm (0,9″) |
| Power Handling | 70 W Continuous Power 210 W Peak Power |
| Depth | 63 mm |
| Impedance | 4 Ω |
| Frequency Response | 60 – 23k Hz |
| Sensitivity | 93 dB/Spl |
| Xmax | +/- 2 mm |
| FS | 70 Hz |
| Voice coil woofer | 32 mm |
| Speaker grill | Not included |
Technical Data
- Brand
- Audison
- Reference
- AUAPX570
- Speaker Type
- Fullrange
- Speaker Size
- 5x7"
- Impedance
- 4 Ω
- Watt RMS
- 70 w
- Watt peak
- 210 w
- Frequency Response
- 60 ÷ 23k Hz
- Sensitivity
- 93 dB/Spl
- Mounting Depth
- 63 MM
- EAN13
- 8018823111867
