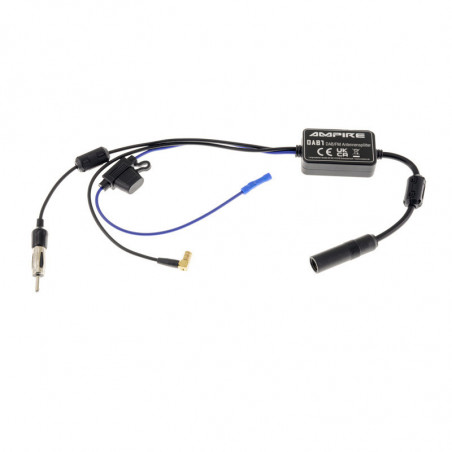

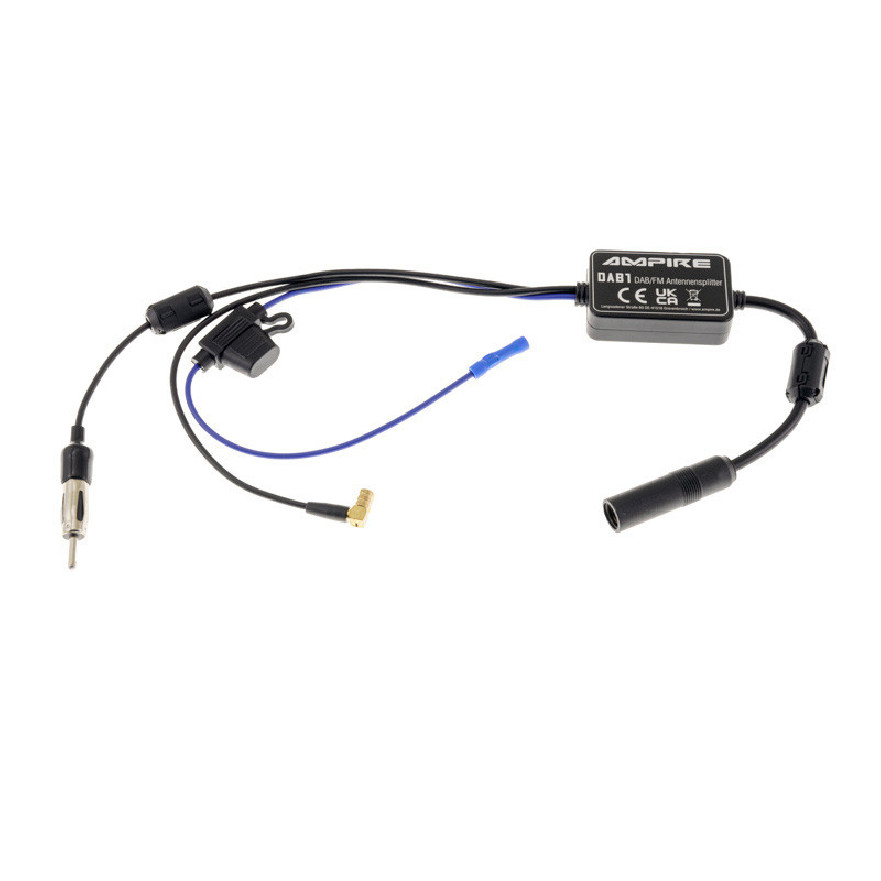

Ampire DAB1

Perfect Reception: DAB+ Antenna Splitter for FM Rod Antennas
Do you want to upgrade your car with a DAB+ radio but don't want the hassle of installing an additional DAB+ antenna? Our active DAB+ antenna splitter is the perfect solution! It allows you to use your existing passive telescopic or rod antenna for receiving both FM and DAB+ signals. This way, you avoid installing a separate antenna while still getting crystal-clear digital radio reception.

Plug & Play with Outstanding Features
This antenna distributor is more than just a splitter. It is equipped with a low-noise amplifier that optimizes the signal, ensuring excellent reception quality. The Plug & Play approach makes installation a breeze: simply connect it between the radio and the antenna, and you can immediately enjoy your favorite stations in digital quality.

Features:
Active DAB+ antenna splitter for optimal performance
Plug & Play simple and fast installation
Low-noise amplifier for clear reception
Gold-plated SMB right-angle connector for best signal transmission
No additional DAB antenna installation necessary
Suitable for FM antennas from 30 to 100 cm in length

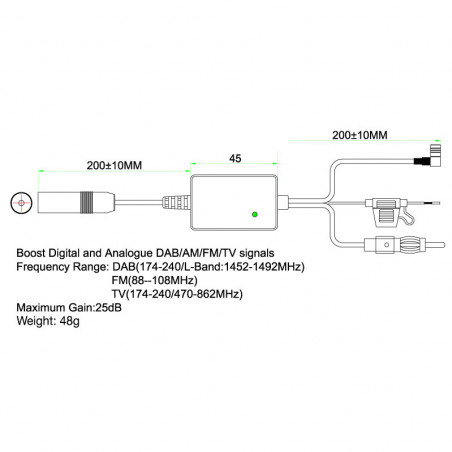

Technical Specifications:
Adapter length: approx. 34 cm
Connectors: 1x Gold-plated SMB right-angle female, 1x DIN antenna male (150 Ohm), 1x DIN antenna female (150 Ohm)
Power supply: 12V
Current consumption: 6 mA
Noise figure: <2dB

Wiring:
The blue wire should be connected to the 12 volts remote output of your car radio.

Important Notes:
This product is not suitable for antennas with phantom power or window antennas.
The antenna voltage must be switched off on the DAB device to prevent malfunctions.

Upgrade your car hi-fi system to DAB+ now and experience your music in a new digital quality.
