KAX802

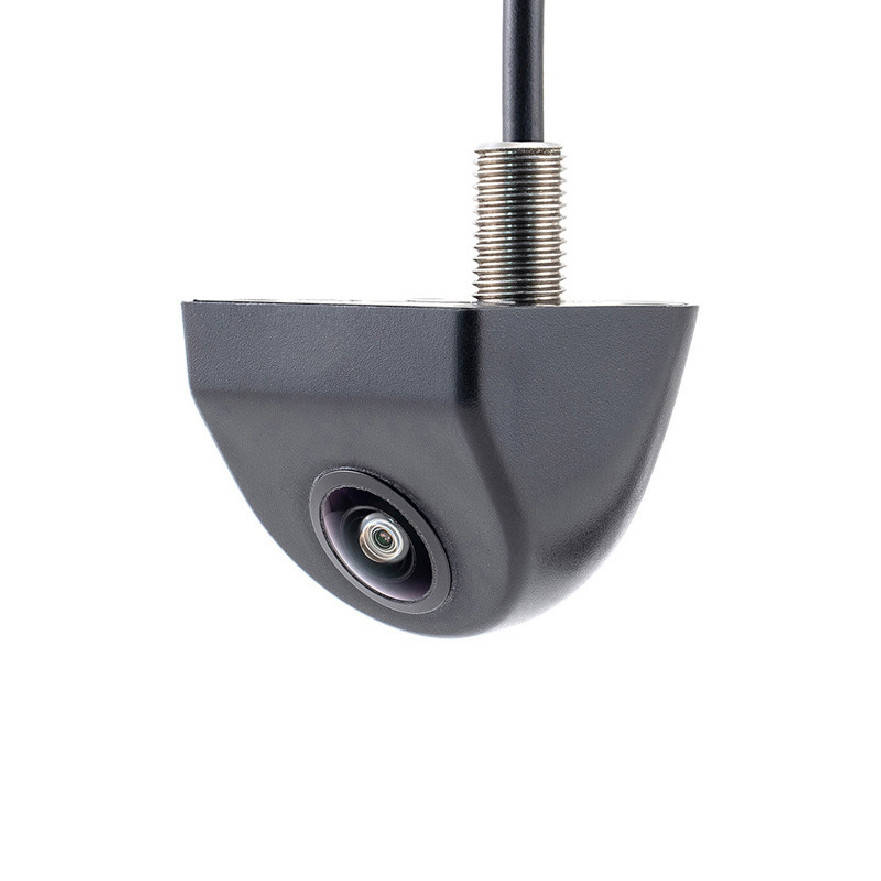

The KAX802 miniature 150° wide-angle under-car camera is an AHD/CVBS reversing camera with a limitless range of applications in cars, buses, motorhomes, lorries or trailers. The matt black plastic housing is particularly weatherproof, IP69K waterproof and very sturdy. Optionally, two different auxiliary lines (narrow/wide) can be displayed in the video signal to enable the viewer to park more easily. Supplied complete with 8 metre extension cable with high quality copper strands.

FEATURES
- AHD/CVBS 150° wide-angle camera in plastic housing
- Can be used in 24/7 continuous operation
- IP69K waterproof with stainless steel bracket

SETTING OPTIONS
- Video format AHD or CVBS (adjustable)
- Guide lines: switched off at the factory (adjustable with green cable loop)
- Image display mirrored (adjustable with blue cable loop)
- Image reproduction rotated 180° (adjustable with white cable loop)

TECHNICAL DATA
- Image sensor type AHD 1/4" 2729
- Video signal 1080P with 25 frames/second
- Resolution 1920x1080 pixels
- Diagonal viewing angle 170°
- Horizontal viewing angle 150°
- Vertical viewing angle 90°
- Exposure 1/50-60~1/15000 seconds
- Signal to noise ratio =>60.5dB
- Light sensitivity < 0.01 lux
- Automatic white balance
- Automatic video level adjustment

GENERAL DATA
- Operating voltage 6 to 26 Volt DC
- Power consumption 60-90mA
- DIN protection class IP69K
- Black matt housing with stainless steel mounting

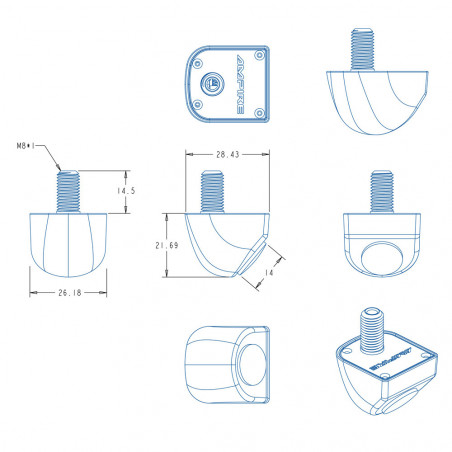

- Mounting dimensions camera 25.8x28.2mm and 20.8mm high
- Drill hole 8mm
- Operating temperature -40°C to +75°C
- Storage temperature -60°C to 105°C
- E certified

APPROVALS
CE Directive of 2004/108/EC, EN55022: 2010, EN 55024: 2010 Report No. STR12058091E
FCC Part 15B Report No. STR12058092E-3

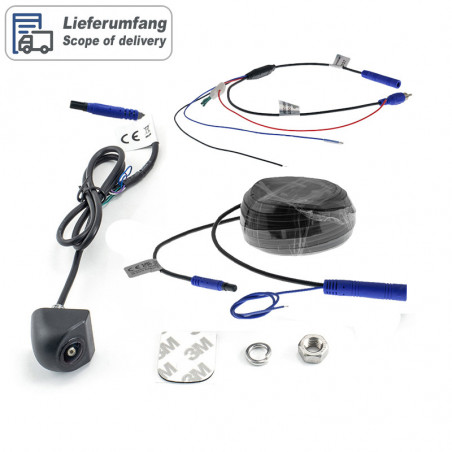

SCOPE OF DELIVERY
- Camera
- 8m extension cable
- Power supply unit
- Operating instructions

ORDERING INFORMATION

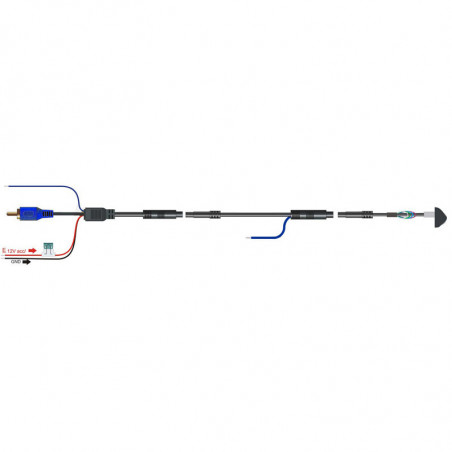

This camera is a high-resolution AHD camera with 1080P resolution and 25 frames per second. In AHD mode, this camera can only be connected to AHD-compatible monitors, car radios, or interfaces. If the camera input on your monitor does not support AHD and can only display a video signal in CVBS, FBAS, or NTSC, then this camera (purple cable loop) must be set to CVBS.

IMPORTANT INSTALLATION INFORMATION
The camera head is waterproof in accordance with DIN protection class IP69K and does not require additional sealing during installation. The camera lens is made of glass and is fragile. All metal parts are made of stainless steel. Stainless steel is rust-resistant because it has a protective layer of chromium oxide. However, this layer can be damaged or degraded under certain conditions, which can lead to the formation of rust film.
