KAX102

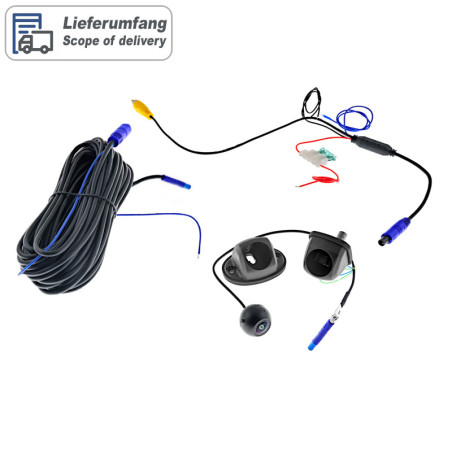

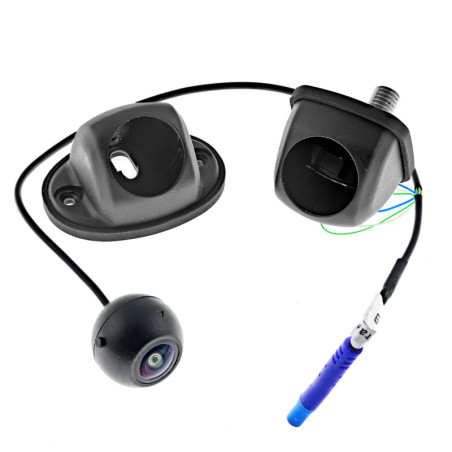

The KAX102 miniature in/under-car camera is a high-resolution AHD/CVBS camera with a limitless range of applications in cars, buses, motorhomes, lorries or trailers as a front or rear view camera. The matt black housing is particularly weatherproof, IP69K waterproof and very sturdy. Optionally, auxiliary lines can be displayed in the video signal to enable the viewer to park more easily. Supplied complete with 8 meter extension cable with high quality copper strands.

FEATURES

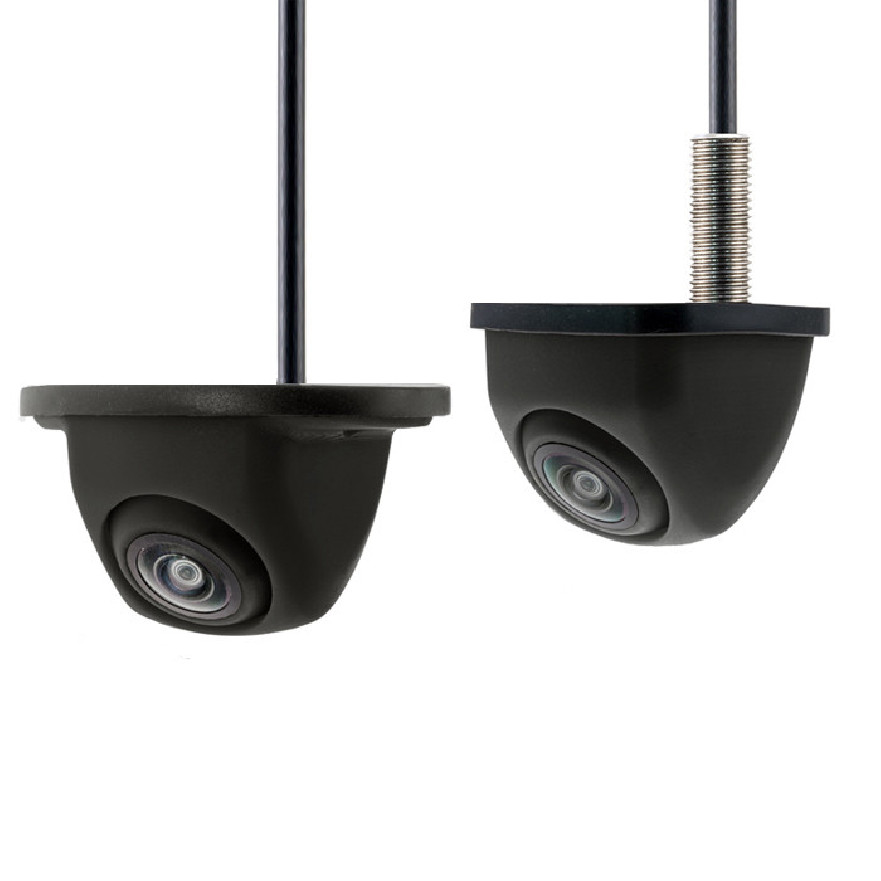

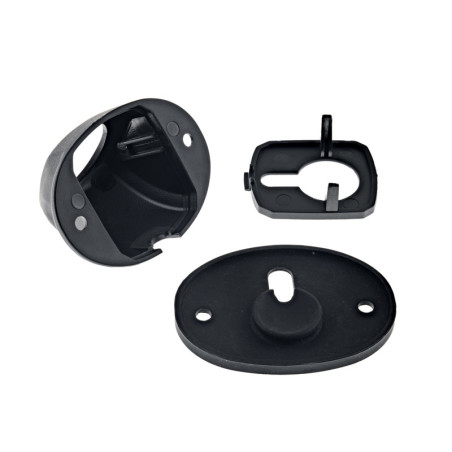

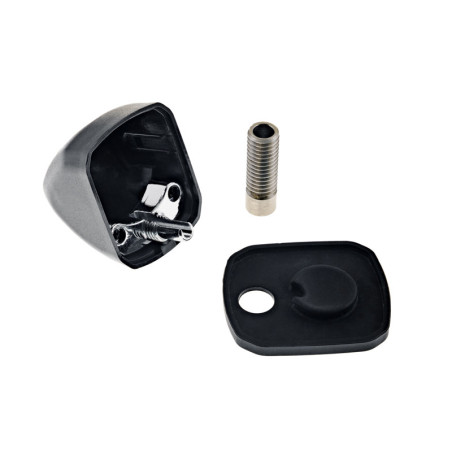

- AHD wide-angle camera with two plastic housings
- Can be used in 24/7 continuous operation
- IP69K waterproof with stainless steel bracket

SETTING OPTIONS
- Guide lines: switched off at the factory (adjustable)
- Image display mirrored (adjustable)
- Camera can mounted 180° rotated

TECHNICAL DATA
- Image sensor type: AHD 1/4" 2729 or CVBS
- AHD video signal: 1080P @ 25 fps (frames per second)
- AHD resolution: 1920x1080 pixels
- AHD diagonal field of view (FOV): 200°
- AHD horizontal field of view (FOV): 170°
- AHD vertical field of view (FOV): 110°
- CVBS diagonal field of view (FOV): 165°
- CVBS horizontal field of view (FOV): 140°
- CVBS vertical field of view (FOV): 85°
- Exposure 1/50-60~1/15000 seconds
- Signal to noise ratio =>60.5dB
- Light sensitivity < 0.01 lux
- Automatic white balance
- Automatic video level adjustment

GENERAL DATA
- Operating voltage 6 to 26 Volt DC
- Power consumption 60-90mA
- DIN protection class IP69K
- Black matt housing with stainless steel mounting
- Operating temperature -40°C to +75°C
- Storage temperature -60°C to 105°C

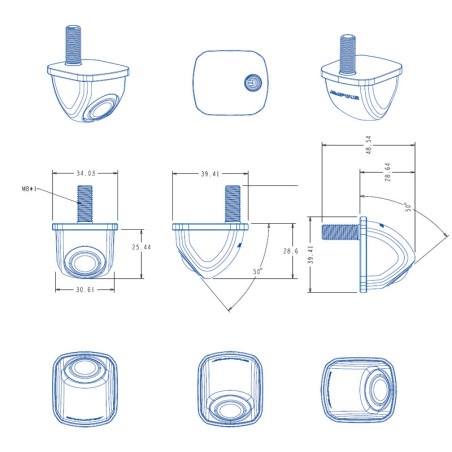

- Dimensions housing 1: 40x34x31mm plus 20mm thread

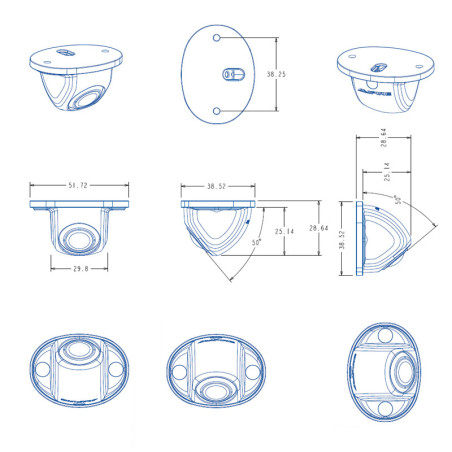

- Dimensions housing 2: 52x39x29mm
- E certified

NOTE ON ORDERING
This camera is a high-resolution AHD camera with 1080P resolution and 25 frames/second. This camera can only be connected to compatible monitors, car radios or interfaces. If the camera input on your monitor can only display a video signal in CVBS, FBAS or NTSC, this AHD camera is unsuitable and you should use the identical CVBS camera with NTSC video signal.

OPTIONAL ACCESSORIES
The optional signal filter AC-PNF-RVC2 is a stabiliser for pulsed reversing lights with PWM signal. We recommend installing the signal filter if you are not sure whether your vehicle has an interference-free power supply.
