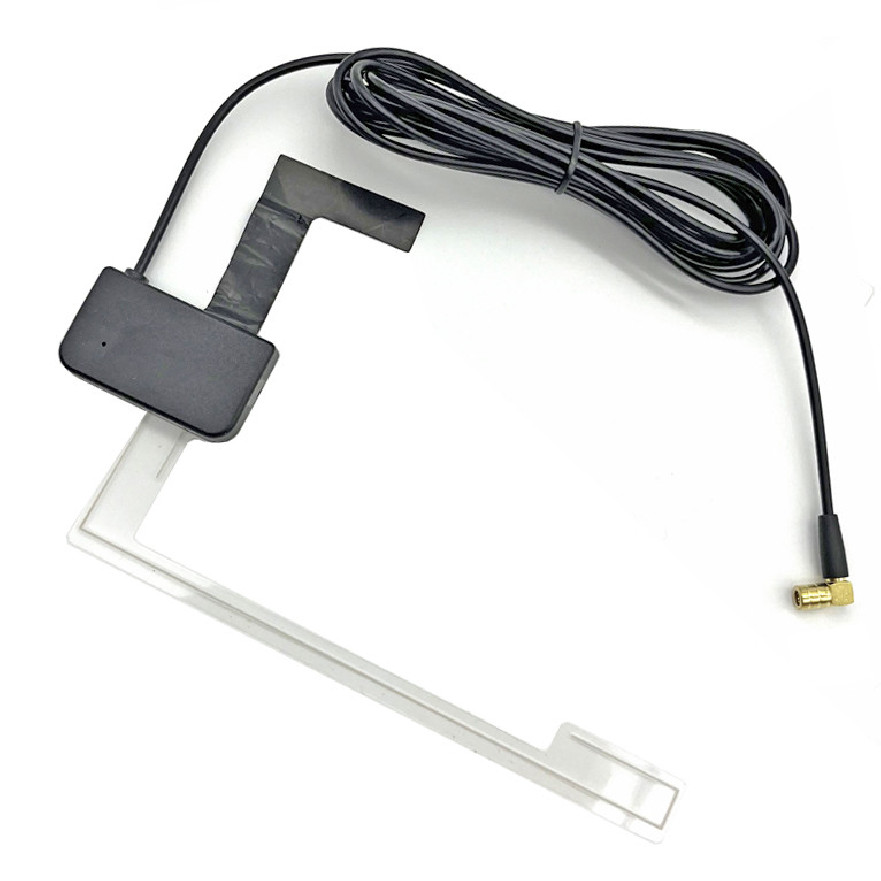

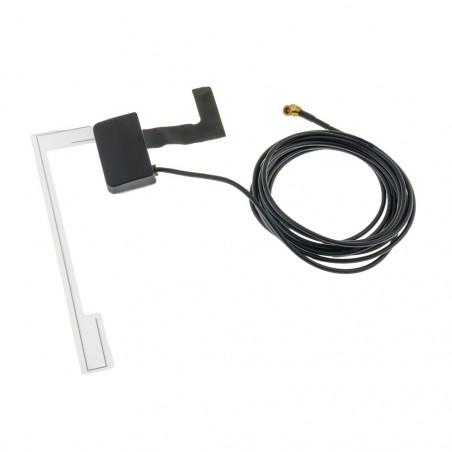

Ampire DAB2-SMB

Adhesive glass indoor antenna for the reception of DAB+ stations

Glass adhesive indoor antenna for adhesive mounting
- Favorable reception characteristics
- theft-proof and safe from vandalism
- No wind noise
- Long service life
- ideally suited for connection to retrofitted DAB+ receivers

Notes
- 5 mm minimum distance between antenna and car body
- coating-, particle- and heating wire-free glass in the mounting area
- Not suitable for reception of FM stations

Technical specifications
Frequency range: B III / L-band
Frequency: 170-240 MHz / 1452-1492 MHz
Output impedance: 50 Ohm
Matching: <3.0 : 1
Polarization: vertical
Gain: 15 dB (B III) / 12 dB (B L)
Operating voltage: +12 Volt DC
Current consumption: 30-60 mA
Cable: RG 174 3.0 m
Impedance: 50 Ohm
Connector: SMB (f), angled connector
Operating temperature: -35°C to 85°C
Processing temperature >20°C
