DCX 170.3
Suggested retail price:
€79.00
Tax included

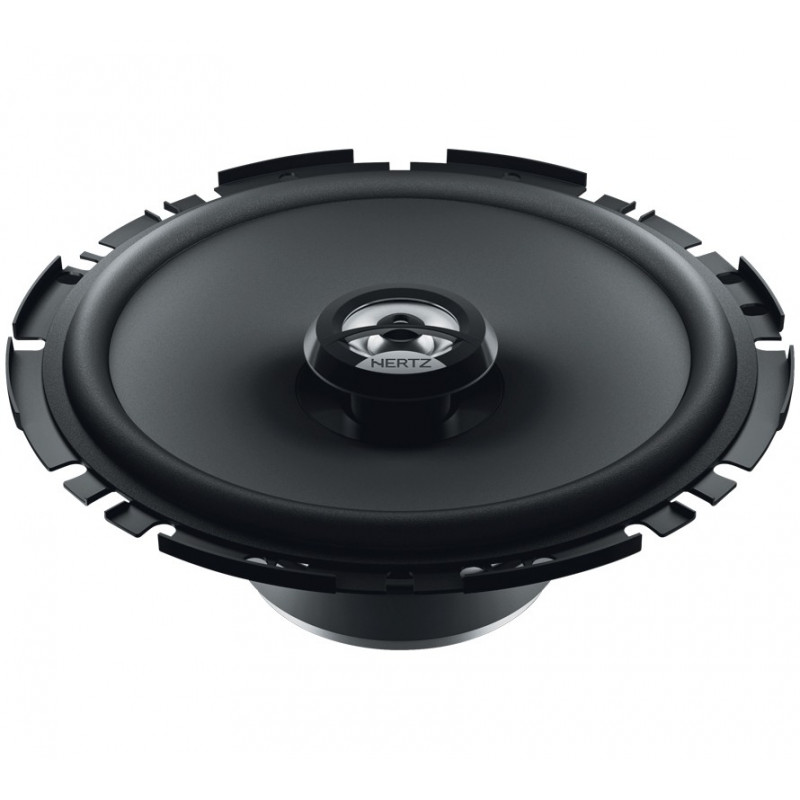

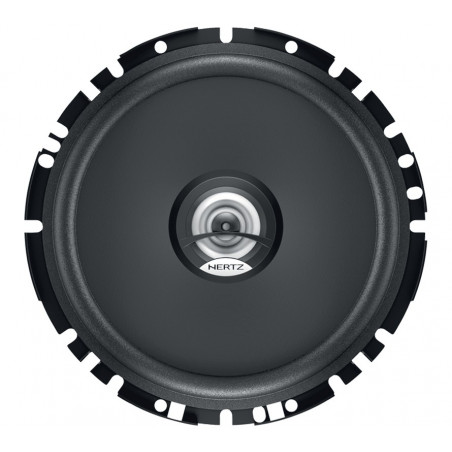

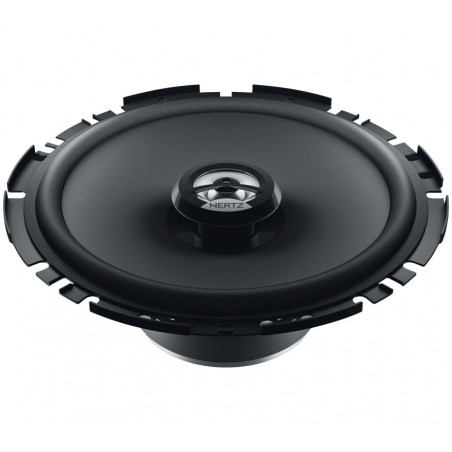

Hertz 170 mm 2 way coaxial set (flat)
diECi DCX 170.3 - 2 way coaxial (flat)
With its 45 mm (2,0 in.) mounting depth the DCX 170.3, is a “flat” car audio coaxials optimized for installation in a vehicle’s door and/or other reduced spaces, without giving up on acoustic reproduction quality. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround, a copper voice coil wound on a conex former and painstaking care in its build ensures performance surpassing other components within the same category.
Technical Data:
| Component | 2 way coaxial |
| Size | 170 mm (6,7″) 24 mm (0,9″) |
| Power Handling | 50 W Continuous Power 100 W Peak Power |
| Depth | 45 mm |
| Impedance | 4 Ω |
| Frequency Response | 60 – 21k Hz |
| Sensitivity | 93 dB/Spl |
| Xmax | +/- 2,7 mm |
| FS | 85 Hz |
| Voice coil woofer | 25 mm |
| Speaker grill | Not included |
Technical Data
- Brand
- Hertz
- Reference
- HZDCX170.3
- Speaker Type
- Fullrange
- Speaker Size
- 6.7"
- Impedance
- 4 Ω
- Watt RMS
- 50 w
- Watt peak
- 100 w
- Frequency Response
- 60 ÷ 21k
- Mounting Depth
- 45MM
- EAN13
- 8018823104203
