AP 1
Suggested retail price:
€89.00
Tax included
Audison Tweeter set 26mm
AP1 Tweeter set

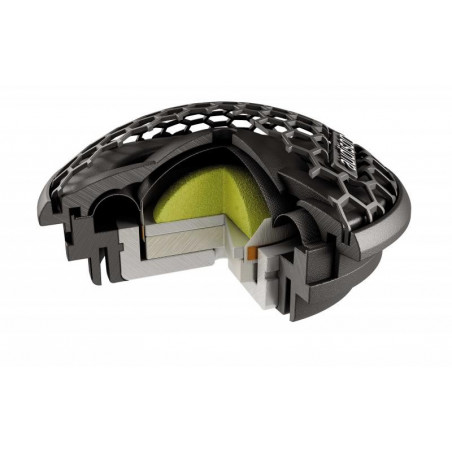

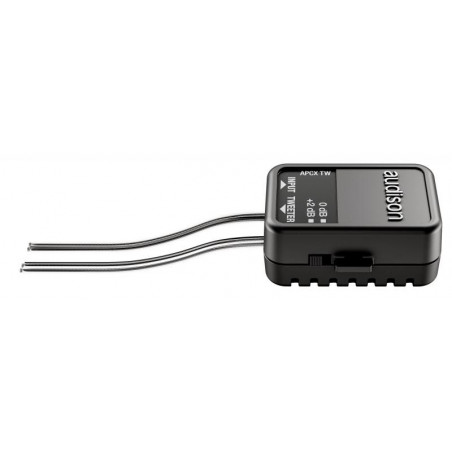

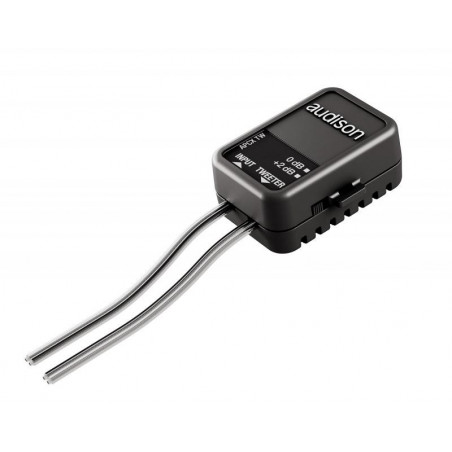

The AP 1 tweeter features a 26 mm diameter emission diaphragm, an acoustic lens designed to compensate for the frequency response within the 10kHz – 13kHz range, a Neodymium REN magnet and extremely small sized dedicated passive crossover.
Technical Data:
| Component | Tweeter |
| Size | 26 mm (1″) |
| Power Handling | 50 W Continuous Power 150 W Peak Power |
| Depth | 8,5 mm |
| Impedance | 4 Ω |
| Frequency Response | 2 k Hz – 20k Hz |
| Sensitivity | 93 dB/Spl |
| Crossover type | 1-way inline tweeter |
| Crossover | HP @ 3,5 kHz - 6 dB Oct |
| FS | 1500 Hz |
| Voice coil woofer | 20 mm |
| Speaker grill | Included |
Technical Data
- Brand
- Audison
- Reference
- AUAP1
- Speaker Type
- Component
- Speaker Size
- Tweeter
- Impedance
- 4 Ω
- Watt peak
- 150 w
- Frequency Response
- 2k ÷ 20k Hz
- Mounting Depth
- 8,5 MM
- EAN13
- 8018823111638
