AP 5
Suggested retail price:
€99.00
Tax included

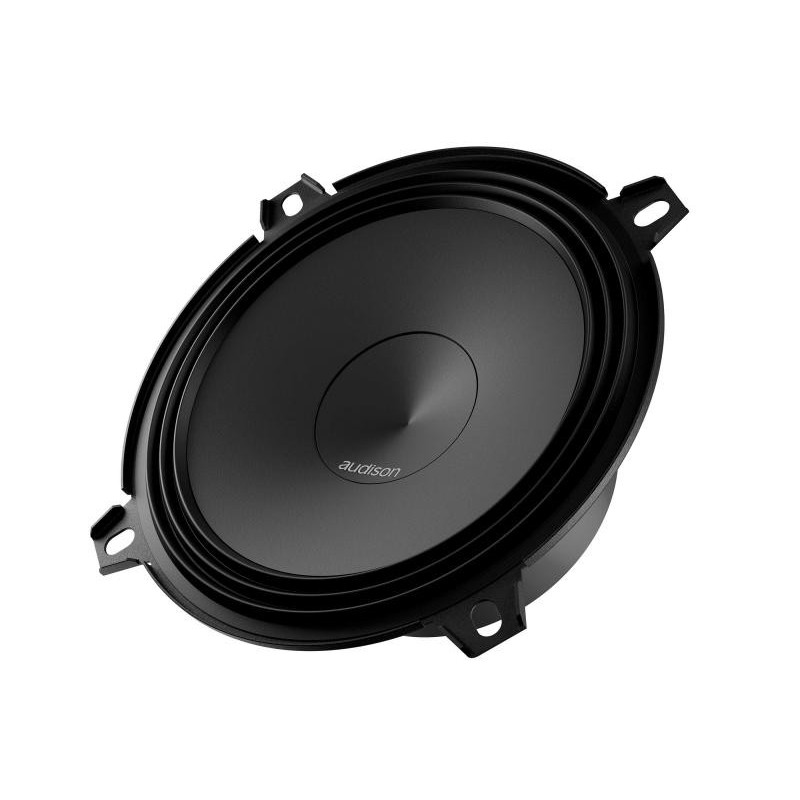

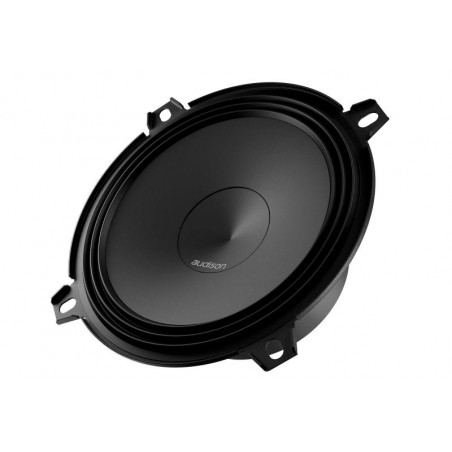

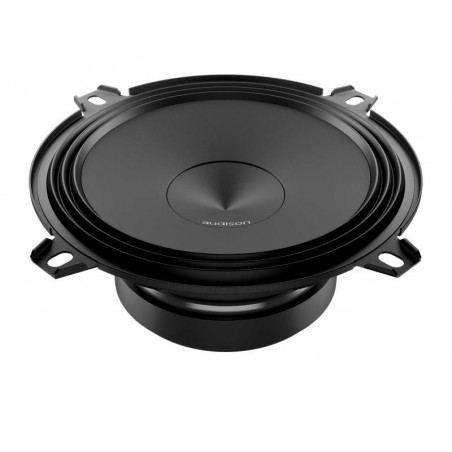

Audison woofer set 130 mm
AP 5 - woofer

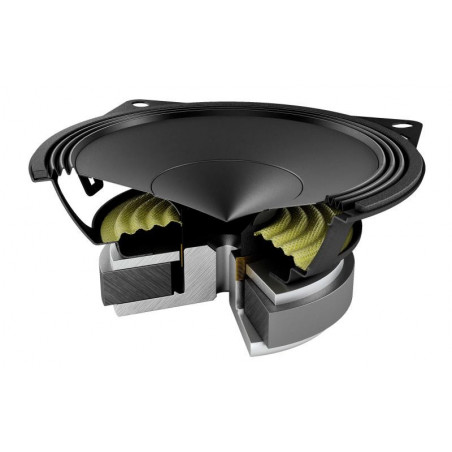

AP 5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control. All the woofers don’t employ any filter, to maximize efficiency: the dome profile has been optimised with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Technical Data:
| Component | Woofer |
| Size | 130 mm (5″) |
| Power Handling | 50 W Continuous Power 150 W Peak Power |
| Depth | 48.5 mm |
| Impedance | 4 Ω |
| Frequency Response | 70 – 5k Hz |
| Sensitivity | 93 dB/Spl |
| Xmax | +/- 2 mm |
| FS | 90 Hz |
| Voice coil woofer | 32 mm |
| Speaker grill | Not included |
Technical Data
- Brand
- Audison
- Reference
- AUAP5
- Speaker Type
- Component
- Speaker Size
- 5"
- Impedance
- 4 Ω
- Watt RMS
- 50 w
- Watt peak
- 150 w
- Mounting Depth
- 48,5 MM
- EAN13
- 8018823111768
