DCX 690.3
Suggested retail price:
€119.00
Tax included

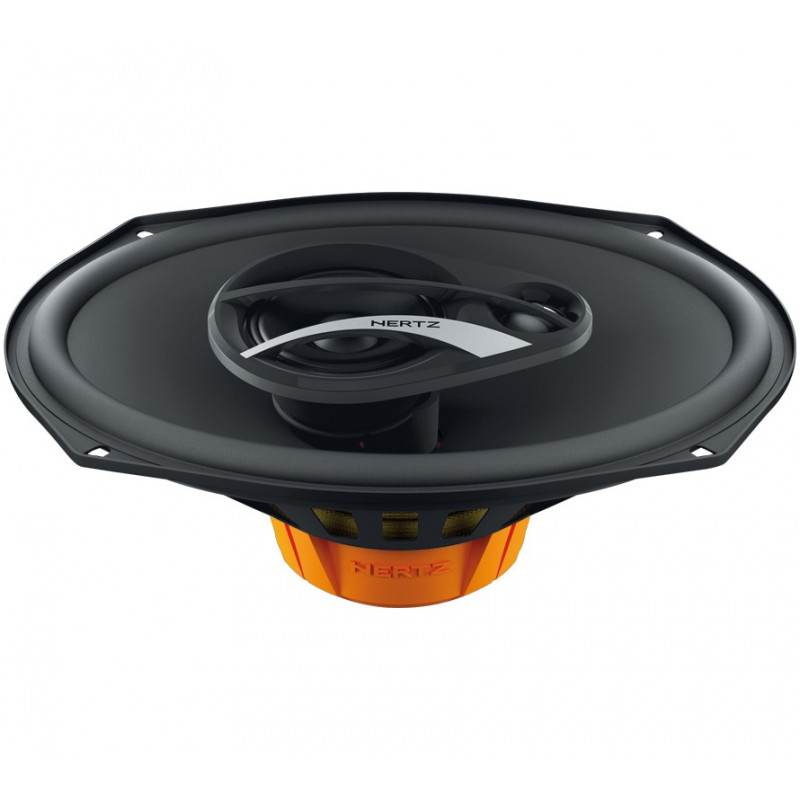

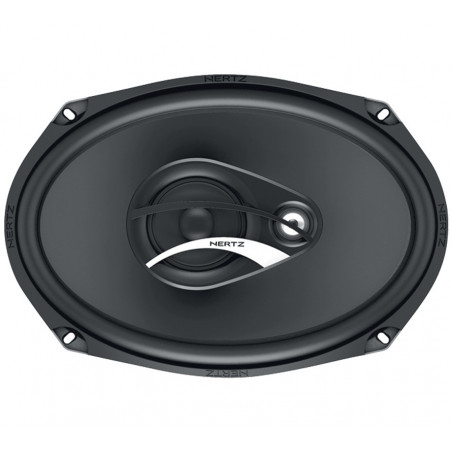

Hertz 6x9 inch 3 way coaxial set
diECi DCX 690.3 - 3 way coaxial
An authentic 3-way coax capable of reproducing a wide frequency spectrum. The DCX 690.3 car audio coaxials uses an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels.
Technical Data:
| Component | 3 way coaxial |
| Size | 6x9″ woofer 60 mm (2,5") midrange 15 mm (0,6″) tweeter |
| Power Handling | 90 W Continuous Power 180 W Peak Power |
| Depth | 77 mm |
| Impedance | 4 Ω |
| Frequency Response | 45 – 21k Hz |
| Sensitivity | 93 dB/Spl |
| Xmax | +/- 4 mm |
| FS | 66 Hz |
| Voice coil woofer | 25 mm |
| Speaker grill | included |
Technical Data
- Brand
- Hertz
- Reference
- HZDCX690.3
- Speaker Type
- Fullrange
- Speaker Size
- 6x9"
- Impedance
- 4 Ω
- Watt RMS
- 90 w
- Watt peak
- 180 w
- Frequency Response
- 45 ÷ 21k
- Mounting Depth
- 77MM
- EAN13
- 8018823104197
