APK 690
Suggested retail price:
€199.00
Tax included

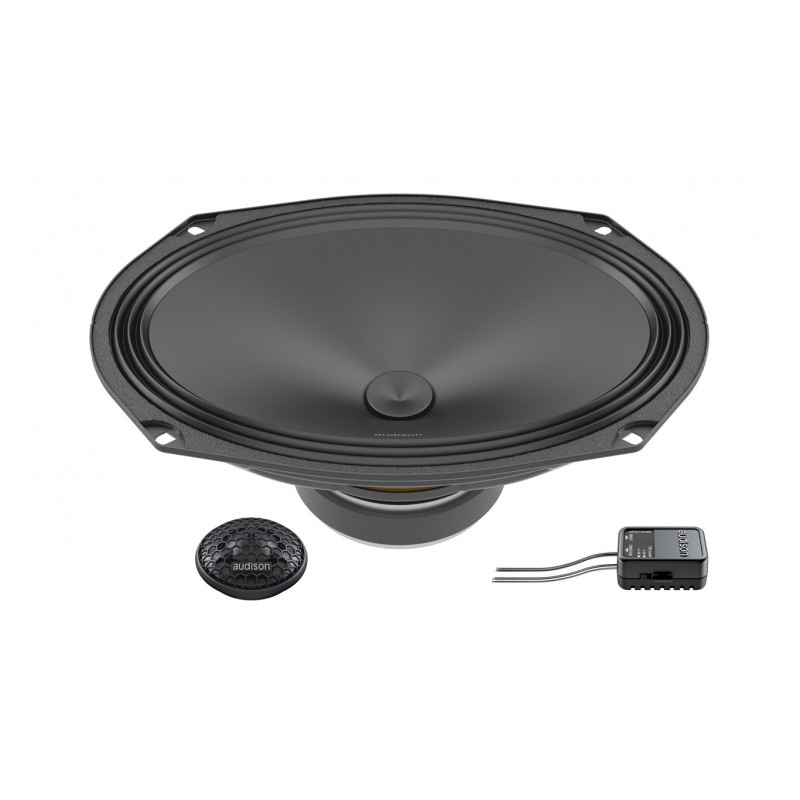

Audison 6x9" 2 way composet
APK 690 - 2 way composet
APK 690 systems is ideal for car models with doors equipped to house elliptical speakers featuring 6×9 inch woofers and AP 1 tweeter with dedicated crossovers APCX TW 690.
Technical Data:
| Component | 2 way System |
| Size | 6x9″ AP 690 Woofer 26 mm (1″) AP 1 Tweeter |
| Power Handling | 100 W Continuous Power 300 W Peak Power |
| Depth | 81 mm |
| Impedance | 4 Ω |
| Frequency Response | 40 – 20k Hz |
| Sensitivity | 95 dB/Spl |
| Crossover type | 1-way inline tweeter |
| Crossover | HP @ 3,3 kHz - 6 dB Oct |
| Xmax | +/- 4 mm |
| FS | 55 Hz |
| Voice coil woofer | 25 mm |
| Speaker grill | Not Included |
Technical Data
- Brand
- Audison
- Reference
- AUAPK690
- Speaker Type
- Composet
- Speaker Size
- 6x9"
- Impedance
- 4 Ω
- Watt RMS
- 100 w
- Watt peak
- 300 w
- Frequency Response
- 40 – 20k Hz
- Sensitivity
- 95 dB/Spl
- Mounting Depth
- 81 MM
- EAN13
- 8018823129695
